1564B2BK1

Active

Hammond Manufacturing

CONSOLE STEEL 24.5X22.6X49 BLK

Deep-Dive with AI

Search across all available documentation for this part.

1564B2BK1

Active

Hammond Manufacturing

CONSOLE STEEL 24.5X22.6X49 BLK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1564 Series

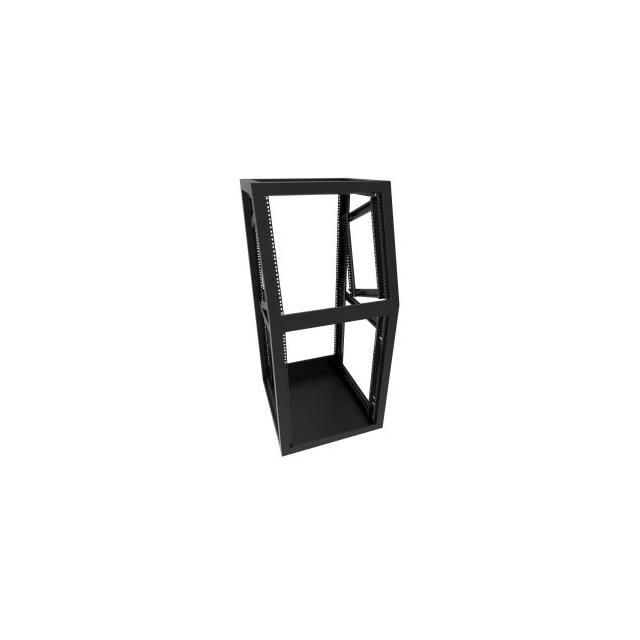

Metal, Steel Sloping Console Open Rack, Double Frame 24.500" L x 22.560" W x 49.000" H (622.30mm x 573.02mm x 1244.60mm) Black

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1564B2BK1	1564 Series

Color	Black	Black
Dimensions - Overall [x]	622.3 mm	622.3 mm
Dimensions - Overall [x]	24.5 "	24.5 "
Dimensions - Overall [y]	22.56 in	22.56 in
Dimensions - Overall [y]	573.02 mm	573.02 mm
Dimensions - Overall [z]	1244.6 mm	1244.6 mm
Dimensions - Overall [z]	49 "	49 "
Dimensions - Panel	-	1071.63 mm
Dimensions - Panel	-	484.12 mm
Dimensions - Panel [x]	24.5 in	17.5 - 24.5 in
Dimensions - Panel [x]	622.3 mm	444.5 - 622.3 mm
Dimensions - Panel [y]	484.12 mm	484.12 mm
Dimensions - Panel [y]	19.06 in	19.06 in
Dimensions - Panel [z]	1071.63 mm	1071.63 mm
Dimensions - Panel [z]	42.19 in	42.19 in
Door	Doorless	Doorless
Features	Front and Rear Access	Front and Rear Access, Angle, 15°
Features	-	30 °
For Use With/Related Products	-	1564B2 Frames, 1564A2 Frames
Material	Metal, Steel	Metal, Steel
Mounting Rails	Two Pair	Two Pair
Number of Units	25 U	25 U
Shipping Info	Drop shipped from the Manufacturer's Warehouse	Drop shipped from the Manufacturer's Warehouse
Style	Open Rack, Double Frame	Open Rack, Double Frame
Type	Sloping Console	Sloping Console, Top Console Tilt Base, Wedge, Panel, Side, Top Console Frame
Type	-	Top Console Panel
Type	-	Side
Ventilation	-	Non-Vented
Weight	52.2 kg	52.2 kg
Weight	115 lbs	2.3 - 115 lbs
Weight	-	5 - 40 lbs

1564 Series

CONSOLE STEEL 24.5X22.6X49 BLK

Part	Door	Material	Mounting Rails	Dimensions - Panel [y]	Dimensions - Panel [z]	Dimensions - Panel [y]	Dimensions - Panel [x]	Dimensions - Panel [z]	Dimensions - Panel [x]	Features	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [y]	Weight	Weight	Type	Shipping Info	Style	Color	Number of Units	Weight	Ventilation	For Use With/Related Products	Features	Type [custom]	Type [custom]	Dimensions - Panel [z]	Dimensions - Panel [y]
Hammond Manufacturing 1564B2BK1	Doorless	Metal, Steel	Two Pair	484.12 mm	1071.63 mm	19.06 in	24.5 in	42.19 in	622.3 mm	Front and Rear Access	622.3 mm	22.56 in	1244.6 mm	49 "	24.5 "	573.02 mm	52.2 kg	115 lbs	Sloping Console	Drop shipped from the Manufacturer's Warehouse	Open Rack, Double Frame	Black	25 U
Hammond Manufacturing 1564CB1924BK1		Metal, Steel								Angle, 15°								4.1 kg	Top Console Tilt Base			Black		9 lbs	Non-Vented	1564B2 Frames
Hammond Manufacturing 1564AW30BK1		Metal, Steel																18.1 kg	Wedge			Black		40 lbs	Non-Vented	1564A2 Frames	30 °
Hammond Manufacturing 1564BPBK1		Metal, Steel																13.6 kg	Panel, Side			Black		30 lbs	Non-Vented	1564B2 Frames
Hammond Manufacturing 1564CB1917BK1		Metal, Steel								Angle, 15°								3.2 kg	Top Console Tilt Base			Black		7 lbs	Non-Vented	1564A2 Frames
Hammond Manufacturing 1564TCP17BK1		Metal, Steel																2.3 kg				Black		5 lbs	Non-Vented	1564A2 Frames		Top Console Panel	Side
Hammond Manufacturing 1564A2BK1	Doorless	Metal, Steel	Two Pair			19.06 in	17.5 "	42.19 in	444.5 mm	Front and Rear Access	622.3 mm	22.56 in	1244.6 mm	49 "	24.5 "	573.02 mm			Sloping Console	Drop shipped from the Manufacturer's Warehouse	Open Rack, Double Frame	Black	25 U							1071.63 mm	484.12 mm
Hammond Manufacturing 1564TC1917BK1		Metal, Steel																6.8 kg	Top Console Frame			Black		15 lbs	Non-Vented	1564A2 Frames
