AAA6FZ

Active

Switchcraft Inc.

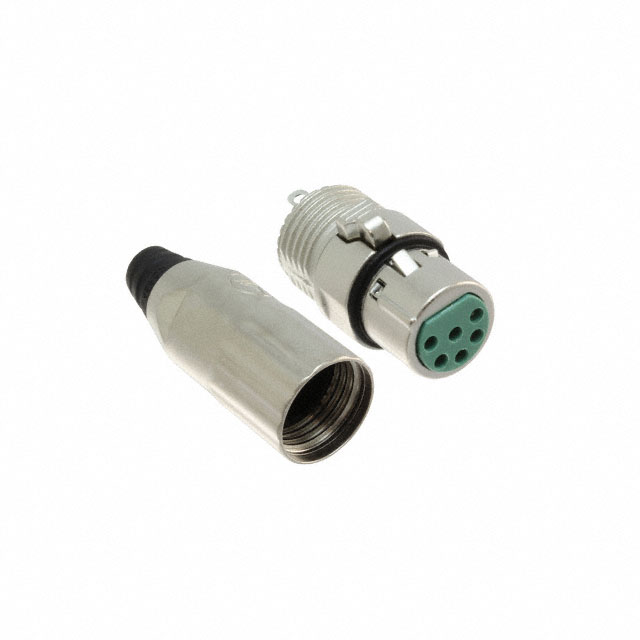

CONN PLUG FMALE XLR 6POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAA6FZ

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 6POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.21
		10	$ 10.16
		25	$ 9.18
		50	$ 8.53
		100	$ 7.93
		250	$ 7.30

Description

General part information

AAA6F Series

6 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AAA6FZ	AAA6F Series

Applications	Audio, Industrial, Instrumentation, Medical	Audio, Instrumentation, Audio, Industrial, Instrumentation, Medical
Backshell Material, Plating	Nickel, Zinc Alloy	Nickel, Zinc Alloy, Chrome, Zinc
Cable Opening	-	0.15 in
Cable Opening	-	3.81 mm
Cable Opening	-	7.24 mm
Cable Opening	-	0.285 in
Cable Opening [diameter]	2.54 mm, 5.59 mm	2.54 - 5.59 mm
Cable Opening [diameter]	0.1 in, 0.22 in	0.1 - 0.22 in
Color	Silver	Silver, Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver, Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	-	IP66
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature	-	65 °C
Operating Temperature	-	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Zinc Alloy	Zinc Alloy
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded
Voltage Rating	125 VAC	125 VAC

AAA6F Series

CONN PLUG FMALE XLR 6P SLDR CUP

Part	Shielding	Shell Material	Primary Material	Fastening Type	Number of Positions	Color	Backshell Material, Plating	Contact Material	Shell Finish	Mounting Type	Orientation	Applications	Features	Insert Material	Connector Type	Contact Finish - Mating	Ingress Protection	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Voltage Rating	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)
Switchcraft Inc. AAA6FZH	Shielded	Zinc Alloy	Metal	Latch Lock	6	Silver	Nickel, Zinc Alloy	Copper Alloy	Nickel	Free Hanging (In-Line)	Keyed	Audio, Instrumentation	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Female Sockets, Plug	Silver	IP66	XLR	65 °C	-40 °C	0.15 in	3.81 mm	7.24 mm	0.285 in
Switchcraft Inc. AAA6FBZ	Shielded	Zinc Alloy	Metal	Latch Lock	6	Black	Chrome, Zinc	Copper Alloy	Chrome	Free Hanging (In-Line)	Keyed	Audio, Industrial, Instrumentation, Medical	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Female Sockets, Plug	Silver		XLR							125 VAC	2.54 mm, 5.59 mm	0.1 in, 0.22 in	7.5 A
Switchcraft Inc. AAA6FPZ	Shielded	Zinc Alloy	Metal	Latch Lock	6	Silver	Nickel, Zinc Alloy	Copper Alloy	Nickel	Free Hanging (In-Line)	Keyed	Audio, Industrial, Instrumentation, Medical	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Female Sockets, Plug	Silver		XLR							125 VAC	2.54 mm, 5.59 mm	0.1 in, 0.22 in	7.5 A
Switchcraft Inc. AAA6FBAUZH	Shielded	Zinc Alloy	Metal	Latch Lock	6	Black	Chrome, Zinc	Copper Alloy	Chrome	Free Hanging (In-Line)	Keyed	Audio, Instrumentation	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Female Sockets, Plug	Gold	IP66	XLR	65 °C	-40 °C	0.15 in	3.81 mm	7.24 mm	0.285 in
Switchcraft Inc. AAA6FBAUZ	Shielded	Zinc Alloy	Metal	Latch Lock	6	Black	Chrome, Zinc	Copper Alloy	Chrome	Free Hanging (In-Line)	Keyed	Audio, Industrial, Instrumentation, Medical	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Female Sockets, Plug	Gold		XLR							125 VAC	2.54 mm, 5.59 mm	0.1 in, 0.22 in	7.5 A
Switchcraft Inc. AAA6FBZH	Shielded	Zinc Alloy	Metal	Latch Lock	6	Black	Chrome, Zinc	Copper Alloy	Chrome	Free Hanging (In-Line)	Keyed	Audio, Instrumentation	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Female Sockets, Plug	Silver	IP66	XLR	65 °C	-40 °C	0.15 in	3.81 mm	7.24 mm	0.285 in
Switchcraft Inc. AAA6FZ	Shielded	Zinc Alloy	Metal	Latch Lock	6	Silver	Nickel, Zinc Alloy	Copper Alloy	Nickel	Free Hanging (In-Line)	Keyed	Audio, Industrial, Instrumentation, Medical	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Female Sockets, Plug	Silver		XLR							125 VAC	2.54 mm, 5.59 mm	0.1 in, 0.22 in	7.5 A
Switchcraft Inc. AAA6FPZH	Shielded	Zinc Alloy	Metal	Latch Lock	6	Silver	Nickel, Zinc Alloy	Copper Alloy	Nickel	Free Hanging (In-Line)	Keyed	Audio, Instrumentation	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Female Sockets, Plug	Silver	IP66	XLR	65 °C	-40 °C	0.15 in	3.81 mm	7.24 mm	0.285 in
