XDMDK14A3

Active

SunLED

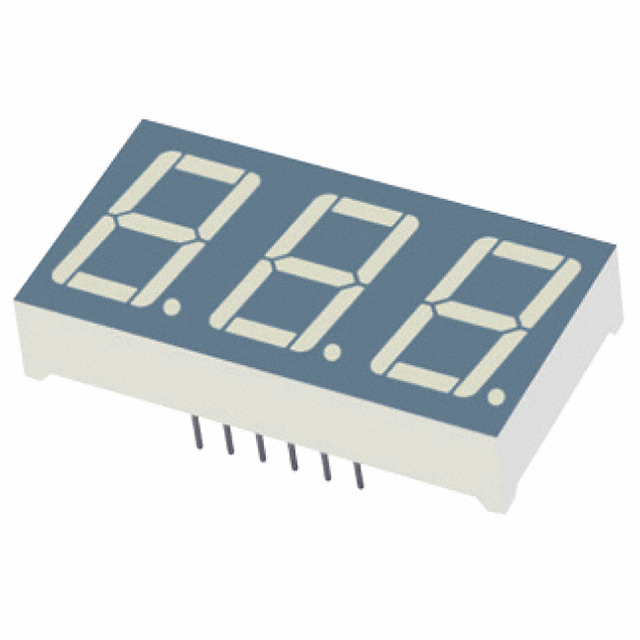

DISPLAY 7SEG 0.56" TRP RED 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDMDK14A3

Active

SunLED

DISPLAY 7SEG 0.56" TRP RED 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDMDK14A3

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	22 mcd
Number of Characters	3
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	12-DIP
Power Dissipation (Max) [Max]	75 mw
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	645 nm

XDMDK14 Series

Part	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Current - Test	Common Pin	Display Type	Color	Package / Case	Package / Case	Package / Case	Number of Characters	Wavelength - Peak	Millicandela Rating	Package / Case
SunLED XDMDK14A2	1.85 V	75 mw	0.56 in	14.22 mm	19.05 mm	25 mm	0.984 in	8 mm	0.315 "	0.75 in	10 mA	Common Anode	7-Segment	Red	15.24 mm	0.6 in	18-DIP	2	645 nm	24 mcd
SunLED XDMDK14A3	1.85 V	75 mw	0.56 in	14.22 mm							10 mA	Common Anode	7-Segment	Red		15.24 mm	12-DIP	3	645 nm	22 mcd	0.6 in
SunLED XDMDK14C3	1.85 V	75 mw	0.56 in	14.22 mm							10 mA	Common Cathode	7-Segment	Red		15.24 mm	12-DIP	3	645 nm	22 mcd	0.6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.55
		13	$ 4.63
		104	$ 3.79
		507	$ 3.20
		1001	$ 2.93
		2002	$ 2.81

Description

General part information

XDMDK14 Series

Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Anode 1.85V 10mA 0.748" H x 1.480" W x 0.319" D (19.00mm x 37.60mm x 8.10mm) 12-DIP (0.600", 15.24mm)
