1504-3/4ST
ActiveCurtis Industries

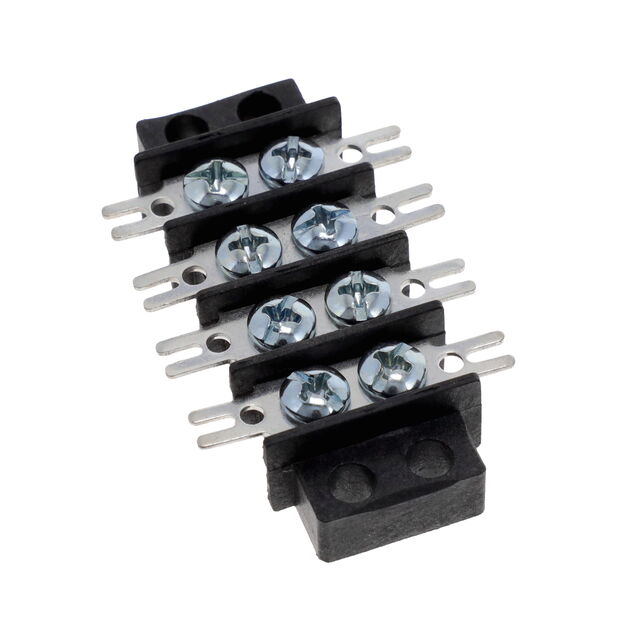

CONN BARRIER STRIP 4CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1504-3/4ST
ActiveCurtis Industries
CONN BARRIER STRIP 4CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1504-3/4ST | 1504 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Closed | Closed |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 4 | 4 |
| Number of Rows | 2 | 2 |
| Number of Wire Entries | 8 | 8 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Tin | Tin |
| Top Termination | Screws with Solder Lugs, Single | Screws with Solder Lugs, Single, Screws with Solder Lugs, Dual |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.80 | |
| 10 | $ 4.42 | |||
| 30 | $ 4.14 | |||
| 50 | $ 3.68 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.32 | |||
| 500 | $ 3.00 | |||
| 1000 | $ 2.66 | |||
1504 Series
CONN BARRIER STRIP 4CIRC 0.375"
| Part | Operating Temperature | Number of Circuits | Bottom Termination | Current Rating (Amps) | Pitch [x] | Pitch [x] | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation | Top Termination | Number of Wire Entries | Features | Terminal Screw Finish | Barrier Type | Number of Rows | Material Flammability Rating | Terminal Block Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 1504-3/4ST | 110 °C | 4 | Closed | 20 A | 9.53 mm | 0.375 in | Chassis, Panel | 22 AWG | 10 AWG | Polyphenylene Oxide (PPO) | Screws with Solder Lugs, Single | 8 | Flange | Tin | 2 Wall (Dual) | 2 | UL94 V-0 | Barrier Block |
Curtis Industries 1504-ST | 110 °C | 4 | Closed | 20 A | 9.53 mm | 0.375 in | Chassis, Panel | 22 AWG | 10 AWG | Polyphenylene Oxide (PPO) | Screws with Solder Lugs, Dual | 8 | Flange | Tin | 2 Wall (Dual) | 2 | UL94 V-0 | Barrier Block |
Description
General part information
1504 Series
4 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Solder Lugs, Single
