Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-MKI125V1 | A3G4250 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Gyroscope | Gyroscope |
| Interconnect System | DIL24 | DIL24 |
| Platform | Professional MEMS Tool | Professional MEMS Tool |
| Suggested Programming Environment | Unico | Unico |
| Type | Sensor | Sensor |
| Utilized IC / Part | A3G4250D | A3G4250D |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
A3G4250 Series
A3G4250D adapter board for standard DIL 24 socket
| Part | Type | Platform | Interconnect System | Suggested Programming Environment | Utilized IC / Part | Contents | Function |
|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-MKI125V1 | Sensor | Professional MEMS Tool | DIL24 | Unico | A3G4250D | Board(s) | Gyroscope |
STMicroelectronics STEVAL-MKI125V1 | |||||||
STMicroelectronics STEVAL-MKI125V1 | |||||||
STMicroelectronics STEVAL-MKI125V1 |
Description
General part information
A3G4250 Series

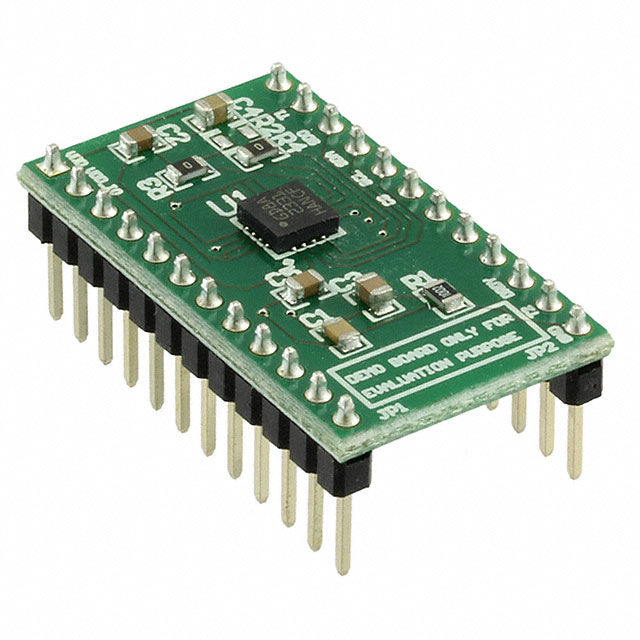

The STEVAL-MKI125V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the A3G4250D product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI125V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete A3G4250D pinout and comes ready-to-use with the required decoupling capacitors on the VDDpower supply line.
This adapter is supported by the STEVAL-MKI109V2 motherboard which includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
