H8MMS-3018G

Active

Assmann WSW Components

DIP CBL - HHDM30S/AE30G/HHDM30S

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CBL - HHDM30S/AE30G/HHDM30S

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CBL - HHDM30S/AE30M/HHDM30S

Part	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Number of Positions	Usage	Cable Termination	Color	Contact Finish	Length [x]	Length [x]	Shielding	Number of Rows	Connector Type	Length	Length	Length
Assmann WSW Components H8MMS-3018M	0.1 in	2.54 mm	0.05 "	1.27 mm	30	Board In, Socket (0.1")	IDC	Multiple, Ribbon	Tin	457.2 mm	1.5 ft	Unshielded	2	DIP to DIP, Reversed
Assmann WSW Components H8MMS-3018G	0.1 in	2.54 mm	0.05 "	1.27 mm	30	Board In, Socket (0.1")	IDC		Tin	457.2 mm	1.5 ft	Unshielded	2	DIP to DIP, Reversed
Assmann WSW Components H8MMS-3006M	0.1 in	2.54 mm	0.05 "	1.27 mm	30	Board In, Socket (0.1")	IDC	Multiple, Ribbon	Tin			Unshielded	2	DIP to DIP, Reversed	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

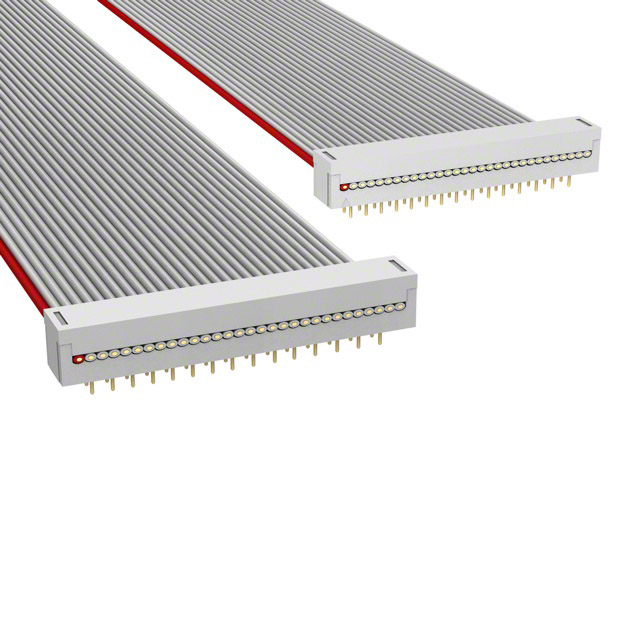

30 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)
