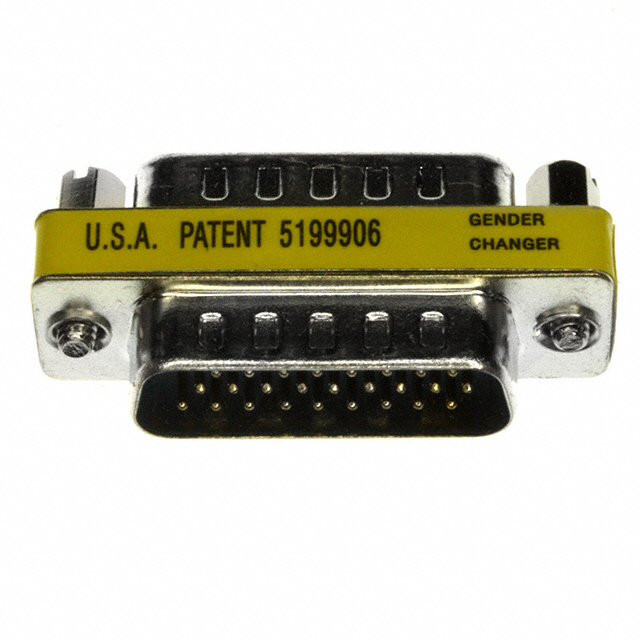

GCHDLP26M26M

Active

MH Connectors

D SUB CONNECTOR ADAPTER, HIGH DENSITY D SUB, PLUG, 26 POSITIONS, HIGH DENSITY D SUB, PLUG

Search across all available documentation for this part.

Active

MH Connectors

D SUB CONNECTOR ADAPTER, HIGH DENSITY D SUB, PLUG, 26 POSITIONS, HIGH DENSITY D SUB, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	GCHDLP26M26M

Connector Style	Gender Changer
Contact Finish	Gold
Contact Finish Thickness	Flash
Convert From (Adapter End)	D-Sub, 26 HD, Male
Convert To (Adapter End)	Male, 26 HD, D-Sub
Current Rating (Amps)	3 A
Features	Grounding Indents
Housing Color	Yellow
Includes	1 Connector, 2 Jack Screws
Material Flammability Rating	UL94 V-0
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C

Part	Convert To (Adapter End)	Current Rating (Amps)	Connector Style	Contact Finish Thickness	Includes	Housing Color	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish	Convert From (Adapter End)	Number of Rows
MH Connectors GCHDLP26M26M	26 HD D-Sub Male	3 A	Gender Changer	Flash	1 Connector 2 Jack Screws	Yellow	UL94 V-0	105 ░C	-55 °C	Grounding Indents	Gold	D-Sub 26 HD Male	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Connector D-Sub, 26 HD, Male To D-Sub, 26 HD, Male Panel Mount
