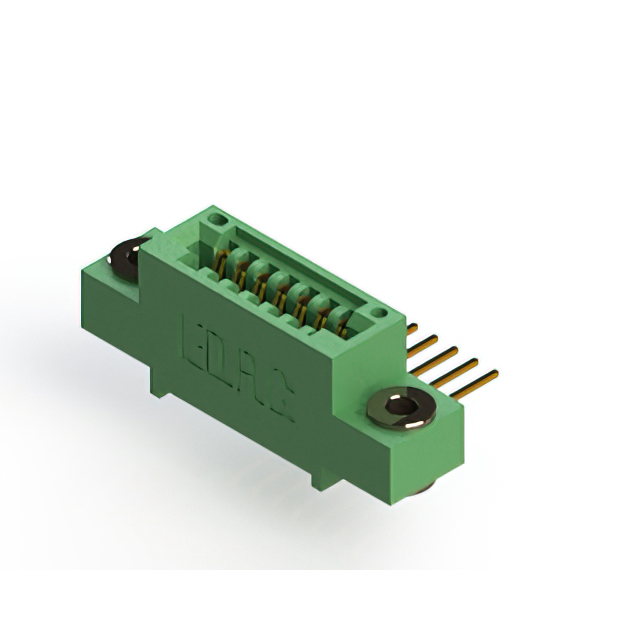

845-007-559-403

Active

EDAC Inc.

CONN EDGE SINGLE FML 7POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-007-559-403

Active

EDAC Inc.

CONN EDGE SINGLE FML 7POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-007-559-403

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions/Bay/Row [custom]	7
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

845-007 Series

...

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Number of Positions/Bay/Row [custom]	Color	Number of Positions	Flange Feature	Flange Feature	Number of Rows	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Material - Insulation	Gender	Pitch [x]	Pitch [x]	Contact Finish	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-007-525-402	Solder	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7	3.25 mm	0.128 in	1	1	125 °C	-40 °C	Through Hole	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy
EDAC Inc. 845-007-524-612	Solder	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7	3.25 mm	0.128 in	1	1	125 °C	-40 °C	Through Hole	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy	Side Mount Opening Unthreaded
EDAC Inc. 845-007-559-407	Solder	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7			1	1	125 °C	-40 °C	Through Hole Right Angle	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy	M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-007-541-104	Wire Wrap	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7			1	1	125 °C	-40 °C	Through Hole	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in
EDAC Inc. 845-007-500-104	Solder Eyelet(s)	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7			1	1	125 °C	-40 °C	Through Hole	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in
EDAC Inc. 845-007-558-602	Solder	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7	3.25 mm	0.128 in	1	1	125 °C	-40 °C	Through Hole Right Angle	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy
EDAC Inc. 845-007-559-403	Solder	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7			1	1	125 °C	-40 °C	Through Hole Right Angle	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy	Floating Bobbin Top Mount Opening	2.95 mm	0.116 in
EDAC Inc. 845-007-521-607	Solder	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7			1	1	125 °C	-40 °C	Through Hole	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy	M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-007-558-402	Solder	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7	3.25 mm	0.128 in	1	1	125 °C	-40 °C	Through Hole Right Angle	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy
EDAC Inc. 845-007-521-612	Solder	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	7	Green	7	3.25 mm	0.128 in	1	1	125 °C	-40 °C	Through Hole	Cantilever	Diallyl Phthalate (DAP)	Female	2.54 mm	0.1 in	Gold	Copper Alloy	Side Mount Opening Unthreaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 60.13
Newark	Each	1	$ 69.41
		100	$ 50.18
		250	$ 44.86
		500	$ 41.05
		1000	$ 33.88

Description

General part information

845-007 Series

7 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
