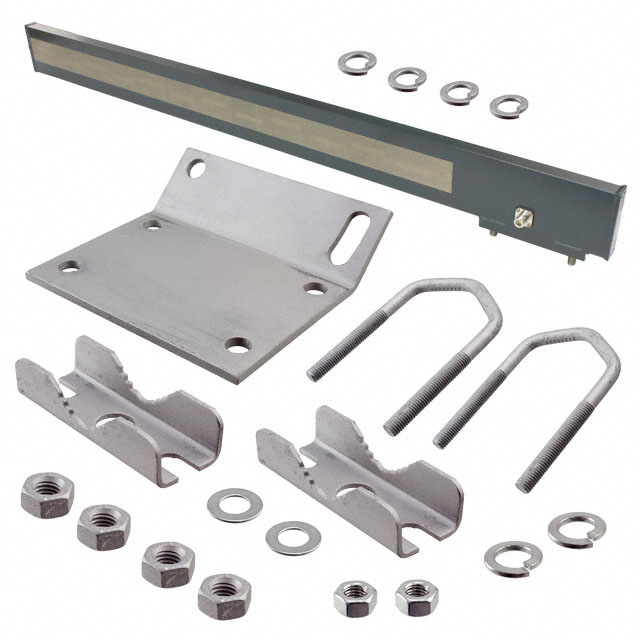

ODH24-13
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 2.4GHZ FLAT BAR N FEM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ODH24-13 |
|---|---|
| Antenna Type | Flat Bar |
| Applications | WiMax™, WLAN |
| Frequency Range [Max] | 2.485 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 13 dBi |
| Height (Max) | 124.46 cm |
| Height (Max) [Max] [z] | 49 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| Return Loss | -14 dB |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ODH24 Series
RF ANTENNA WiMax™, WLAN Flat Bar N Type Female Bracket Mount
