Q-0J01U0003084i

Active

Amphenol Custom Cable

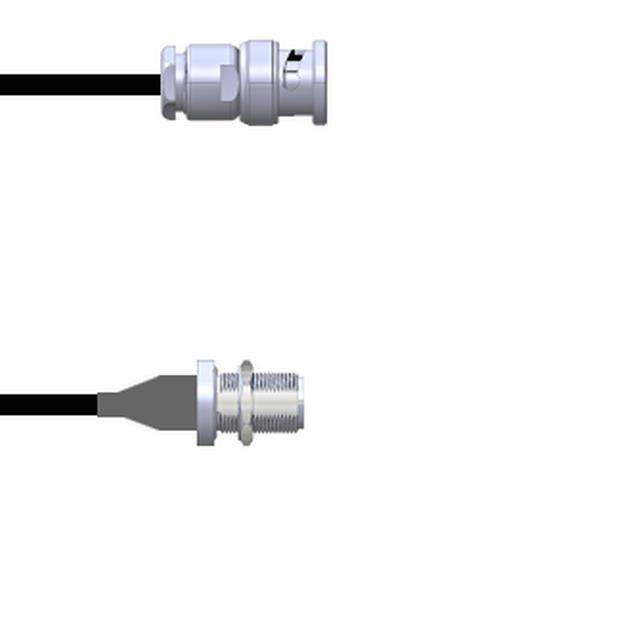

COAX CBL BNC TO N-TYPE 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J01U0003084i

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J01U0003084i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0J01U0 Series

Part	Features	Length	Length	Length	Cable Type	2nd Connector	1st Connector	2nd Connector Mounting Type	Style	Color	Frequency - Max [Max]	1st Connector Mounting Type	Overall Impedance	2nd Connector Mounting Feature	1st Contact Gender	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0J01U0003084i	Shielded	84 in	2.1 m	7 ft	RG-174	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Black	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female
Amphenol Custom Cable Q-0J01U0005006i	Shielded	6 in	152.4 mm		RG-316	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Copper	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female
Amphenol Custom Cable Q-0J01U0003018i	Shielded				RG-174	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Black	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J01U0005.75M	Shielded	29.53 "	750 mm		RG-316	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Copper	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female
Amphenol Custom Cable Q-0J01U0003072i	Shielded	72 in	1.8 m	6 ft	RG-174	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Black	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female
Amphenol Custom Cable Q-0J01U00030.5M	Shielded	19.69 "	50 cm		RG-174	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Black	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female
Amphenol Custom Cable Q-0J01U0005048i	Shielded	48 in	1200 mm	4 ft	RG-316	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Copper	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female
Amphenol Custom Cable Q-0J01U0005072i	Shielded	72 in	1.8 m	6 ft	RG-316	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Copper	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female
Amphenol Custom Cable Q-0J01U00050.5M	Shielded	19.69 "	50 cm		RG-316	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Copper	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female
Amphenol Custom Cable Q-0J01U00051.5M	Shielded	59.1 in	1.5 m	4.9 ft	RG-316	N-Type Jack	BNC Plug	Panel Mount	BNC to N-Type	Copper	4 GHz	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Male	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 101.57
		25	$ 99.63
		50	$ 97.69
		100	$ 95.76
		250	$ 93.82

Description

General part information

Q-0J01U0 Series

Cable Assembly Coaxial BNC to N-Type RG-174 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
