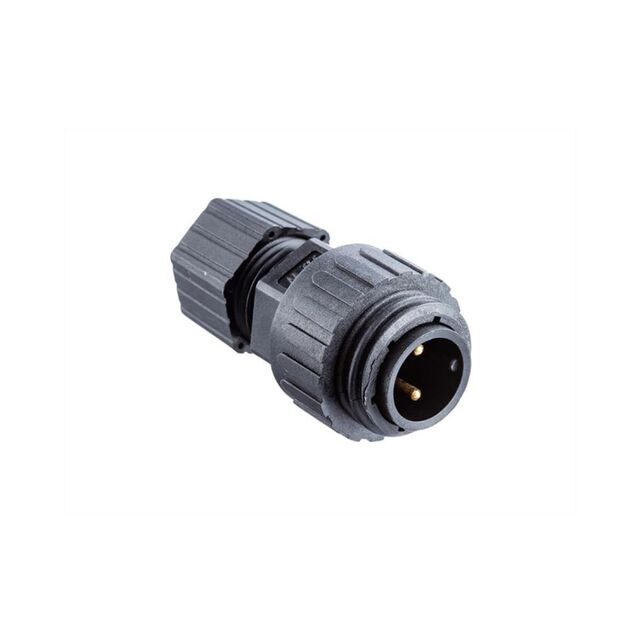

PWE-06BMMA-SL7001
ActiveAmphenol LTW
POWER 8A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PWE-06BMMA-SL7001 |
|---|---|
| Cable Opening [Max] [custom] | 10.8 mm |
| Cable Opening [Max] [custom] | 0.425 in |
| Cable Opening [Min] [custom] | 0.217 in |
| Cable Opening [Min] [custom] | 5.5 mm |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 8 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Voltage Rating | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.31 | |
| 10 | $ 10.18 | |||
| 30 | $ 9.59 | |||
| 50 | $ 9.35 | |||
| 100 | $ 9.10 | |||
| 250 | $ 8.12 | |||
| 500 | $ 7.62 | |||
| 1000 | $ 6.74 | |||
Description
General part information
PWE-06BMMA Series
6 Position Circular Connector Plug, Male Pins Solder Cup
