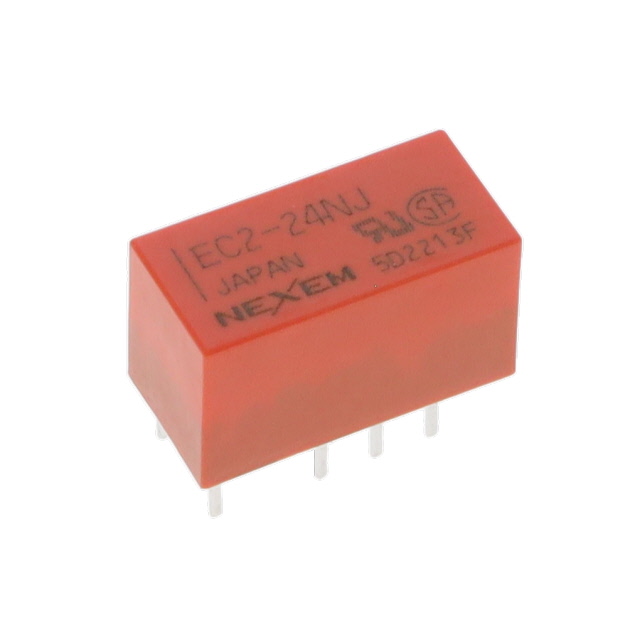

EC2-24NJ
ActiveKEMET
RELAY GEN PURPOSE DPDT 2A 24V
Deep-Dive with AI
Search across all available documentation for this part.
EC2-24NJ
ActiveKEMET
RELAY GEN PURPOSE DPDT 2A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EC2-24NJ |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Coil Current | 8.3 mA |
| Coil Resistance | 2.88 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Gold Alloy, Silver Alloy |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 2 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 1 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.88 | |
| 10 | $ 1.76 | |||
| 25 | $ 1.57 | |||
| 50 | $ 1.49 | |||
| 100 | $ 1.41 | |||
| 250 | $ 1.38 | |||
Description
General part information
EC2-24 Series
General Purpose Relay DPDT (2 Form C) Through Hole
