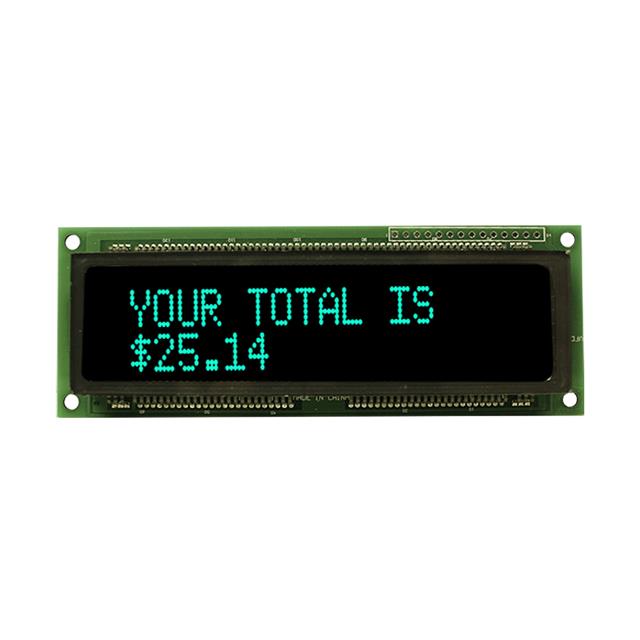

M0216MD-162MDBR2-J
ActiveNewhaven Display Intl
MODULE VF CHAR 2X16 9.22MM
M0216MD-162MDBR2-J
ActiveNewhaven Display Intl
MODULE VF CHAR 2X16 9.22MM
Description
General part information
M0216MD Series
Vacuum Fluorescent Display (VFD) 16 x 2 Character 5V Parallel/Serial 122.00mm x 44.00mm x 20.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | M0216MD-162MDBR2-J |
|---|---|
| Character Height | 9.22 mm |
| Character Width | 3.85 mm |
| Controller Type | PT6314 |
| Display Columns | 16 |
| Display Rows | 2 |
| Display Type | Character |
| Format | CURS |
| Format Height | 7 |
| Format Width | 5 |
| Interface | Parallel/Serial |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Height | 20 mm |
| Outline Length | 122 mm |
| Outline Width | 44 mm |
| Voltage - Supply | 5 VDC |
