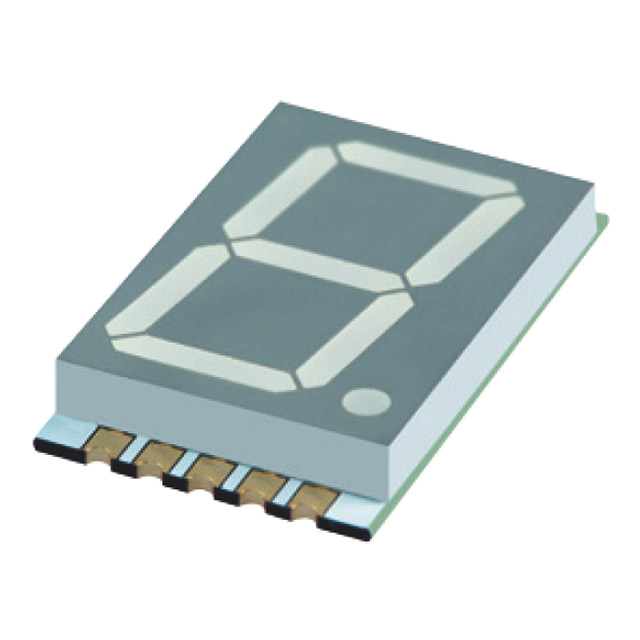

XZFVG20C-A

Active

SunLED

DISPLAY 7SEG 0.8" SGL GRN 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XZFVG20C-A

Active

SunLED

DISPLAY 7SEG 0.8" SGL GRN 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZFVG20C-A

Color	Green
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	20.32 mm
Digit/Alpha Size	0.8 in
Display Type	7-Segment
Millicandela Rating	6 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	24 mm, 0.945 in
Size / Dimension [y]	16.8 mm, 0.661 "
Size / Dimension [z]	0.148 ", 3.75 mm
Voltage - Forward (Vf) (Typ)	2 V

XZFVG20 Series

Part	Power Dissipation (Max) [Max]	Color	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Display Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Characters [custom]	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ)
SunLED XZFVG20C-A	75 mw	Green	Common Cathode	20.32 mm	0.8 in	7-Segment	10-SMD No Lead	0.661 " 16.8 mm	0.945 in 24 mm	0.148 " 3.75 mm	1	6 mcd	10 mA	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XZFVG20 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2V 10mA 0.945" H x 0.661" W x 0.148" D (24.00mm x 16.80mm x 3.75mm) 10-SMD, No Lead

Documents

Technical documentation and resources
