20FMN-BMTTR-A-TB

Active

JST Sales America Inc.

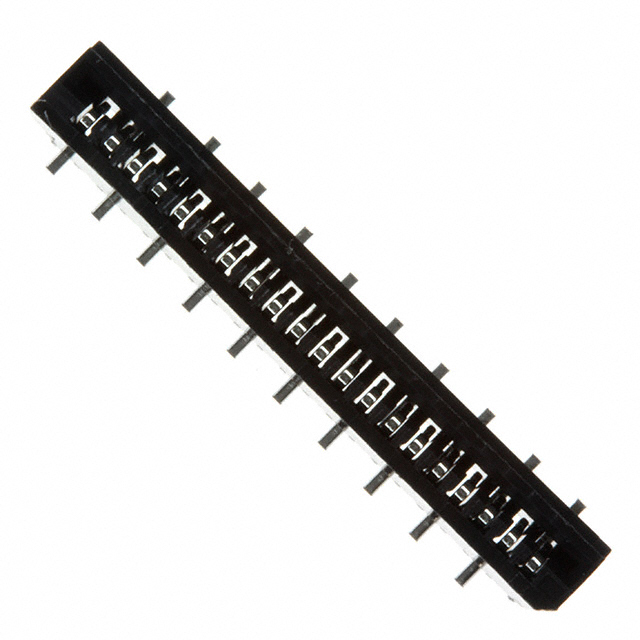

CONN FFC VERT 20POS 1MM SMD

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FFC VERT 20POS 1MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	20FMN-BMTTR-A-TB

Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	0.201 in
Height Above Board	5.1 mm
Housing Color	Black
Housing Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	50 V

Part	Contact Material	Number of Positions	Housing Color	Height Above Board	Height Above Board	FFC, FCB Thickness	Termination	Contact Finish	Voltage Rating	Material Flammability Rating	Current Rating (Amps)	Flat Flex Type	Cable End Type	Features	Housing Material	Mounting Type	Connector/Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. 20FMN-BMT-A-TF(LF)(SN)	Phosphor Bronze	20	Black	0.201 in	5.1 mm	0.3 mm	Solder	Tin	50 V	UL94 V-0	0.5 A	FFC	Straight	Low Insertion Force (LIF)	Polyamide (PA6T) Nylon 6T	Surface Mount	Contacts Vertical - 1 Sided	0.039 in	1 mm	-25 °C	85 °C
JST Sales America Inc. 20FMN-BMTTR-A-TB	Phosphor Bronze	20	Black	0.201 in	5.1 mm	0.3 mm	Solder	Tin	50 V	UL94 V-0	0.5 A	FFC	Straight	Low Insertion Force (LIF)	Polyamide (PA6T) Nylon 6T	Surface Mount	Contacts Vertical - 1 Sided	0.039 in	1 mm	-25 °C	85 °C
JST Sales America Inc. 20FMN-BMTTN-A-TF	Phosphor Bronze	20	Black	0.201 in	5.1 mm	0.3 mm	Solder	Tin	50 V	UL94 V-0	0.5 A	FFC	Straight	Low Insertion Force (LIF)	Polyamide (PA6T) Nylon 6T	Surface Mount	Contacts Vertical - 1 Sided	0.039 in	1 mm	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.58

General part information

20 Position FFC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
