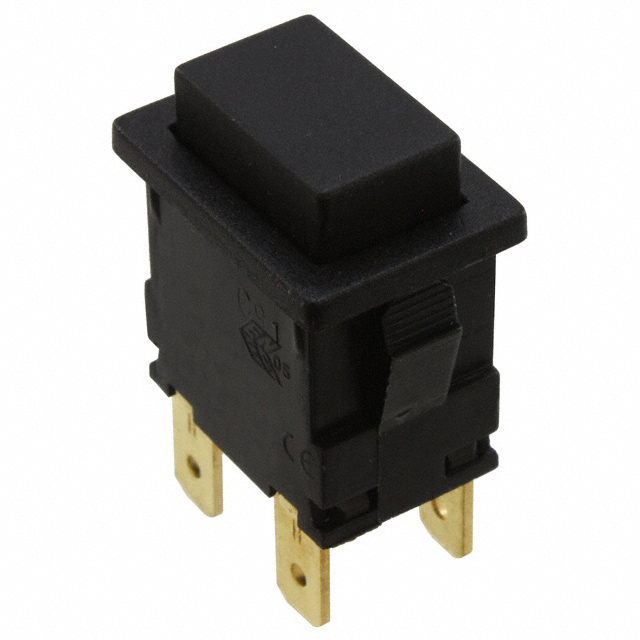

H8350ABBB
ActiveBULGIN LIMITED
SWITCH PUSHBUTTON DPST 12A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H8350ABBB
ActiveBULGIN LIMITED
SWITCH PUSHBUTTON DPST 12A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H8350ABBB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 12 A |
| Electrical Life | 10000 Cycles |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 19.3 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.84 | |
| 10 | $ 9.36 | |||
| 25 | $ 8.82 | |||
| 50 | $ 8.44 | |||
| 100 | $ 8.07 | |||
| 250 | $ 7.61 | |||
| 500 | $ 7.27 | |||
| 1000 | $ 6.96 | |||
Description
General part information
H8350AB Series
Pushbutton Switch DPST Standard Panel Mount, Snap-In
