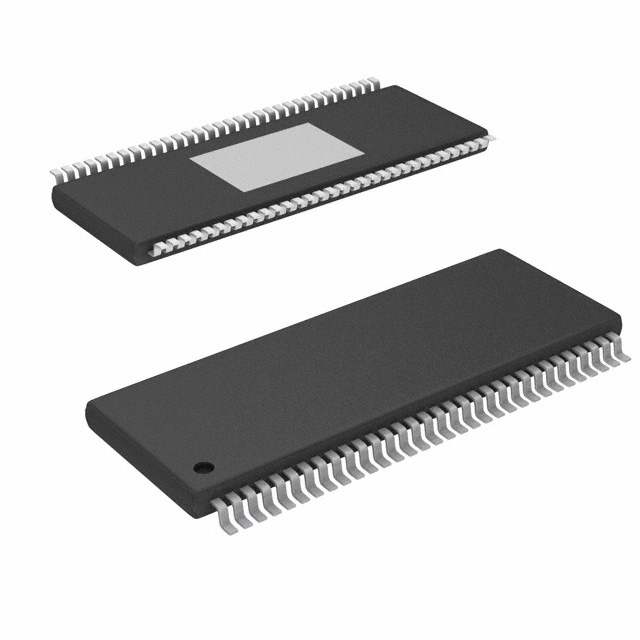

THC63LVD1027-B

Active

THine Solutions, Inc.

IC SER/DESER DUAL LVDS 64TSSOP

Search across all available documentation for this part.

Active

THine Solutions, Inc.

IC SER/DESER DUAL LVDS 64TSSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	THC63LVD1027-B	THC63 Series

Data Rate	-	1.12 Gbps
Function	Serializer/Deserializer	Serializer/Deserializer, Serializer
Input Type	LVDS	LVDS, CMOS/TTL
Mounting Type	Surface Mount	Surface Mount
Number of Inputs	30	28 - 30
Number of Outputs	30	4 - 30
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Output Type	LVDS	LVDS
Package / Case	64-TFSOP	64-TFSOP, 56-TFSOP
Package / Case	-	6.1 mm
Package / Case	-	0.24 in
Package / Case [custom]	6.1 mm	6.1 mm
Package / Case [custom]	0.24 in	0.24 in
Supplier Device Package	64-TSSOP	64-TSSOP, 56-TSSOP
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

IC SER/DESER DUAL LVDS 64TSSOP

Part	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of Inputs	Package / Case [custom]	Package / Case	Package / Case [custom]	Output Type	Supplier Device Package	Package / Case	Package / Case	Data Rate
THine Solutions, Inc. THC63LVD1027-B	LVDS	85 °C	-40 °C	30	Serializer/Deserializer	3.6 V	3 V	Surface Mount	30	6.1 mm	64-TFSOP	0.24 in	LVDS	64-TSSOP
THine Solutions, Inc. THC63LVDM83D	CMOS/TTL	70 °C	0 °C	4	Serializer	3.6 V	3 V	Surface Mount	28		56-TFSOP		LVDS	56-TSSOP	6.1 mm	0.24 in	1.12 Gbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Serializer/Deserializer 30 Input 30 Output 64-TSSOP
