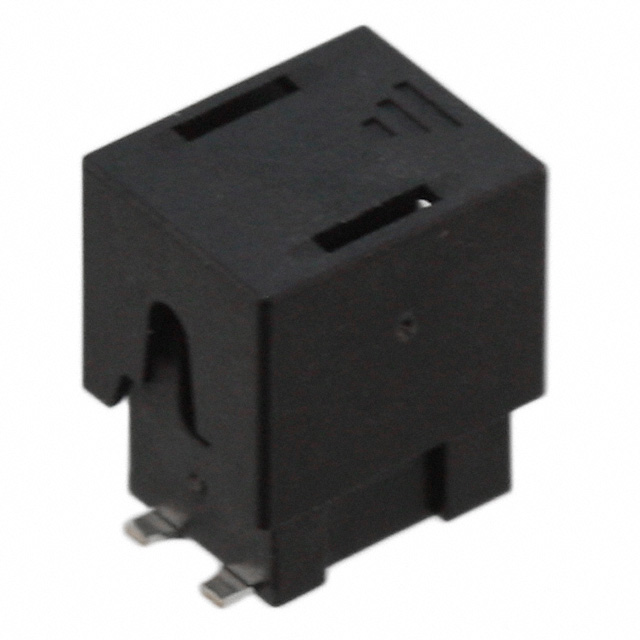

009178001001006
ObsoleteKyocera AVX
CONN IDC BOARD IN R/A 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
009178001001006
ObsoleteKyocera AVX
CONN IDC BOARD IN R/A 50 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 009178001001006 |
|---|---|
| Cable Group | RG-178 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Tin |
| Connector Style | Direct to Cable, IDC |
| Connector Type | Board-In |
| Contact Termination | Solder |
| Dielectric Material | Polyamide (PA46), Nylon 4/6 |
| Housing Color | Black |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
9178 Series
Direct to Cable, IDC Connector Board-In 50 Ohms Surface Mount, Right Angle Solder
