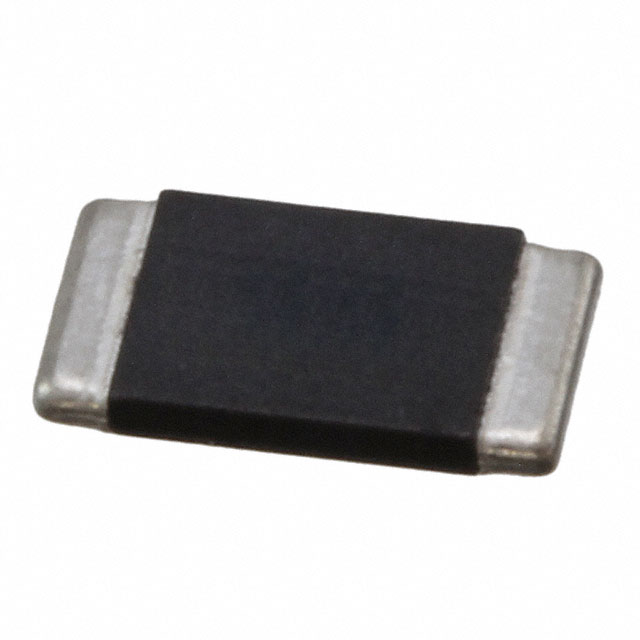

CRE2512-FZ-R003E-2
ActiveBourns Inc.
RES 0.003 OHM 1% 2W 2512
Deep-Dive with AI
Search across all available documentation for this part.
CRE2512-FZ-R003E-2
ActiveBourns Inc.
RES 0.003 OHM 1% 2W 2512
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CRE2512-FZ-R003E-2 |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 2 W |
| Ratings | AEC-Q200 |
| Resistance | 3 mOhms |
| Size / Dimension [x] | 0.254 in |
| Size / Dimension [x] | 6.45 mm |
| Size / Dimension [y] | 0.132 in |
| Size / Dimension [y] | 3.35 mm |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.45 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.53 | |||
| 25 | $ 0.45 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 4000 | $ 0.22 | ||
| 8000 | $ 0.21 | |||
| 12000 | $ 0.20 | |||
| 20000 | $ 0.19 | |||
| 28000 | $ 0.19 | |||
| 40000 | $ 0.18 | |||
Description
General part information
CRE2512 Series
3 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
