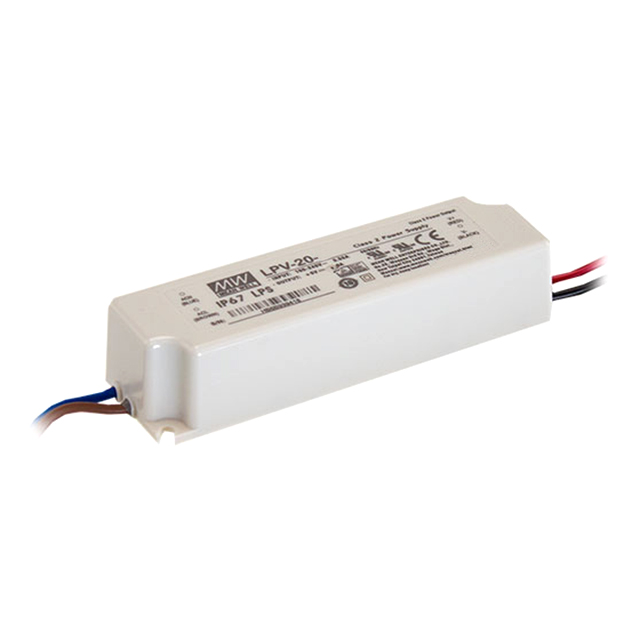

LPV-20-15

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 15V 1.33A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 15V 1.33A

Technical Specifications

Parameters and characteristics for this part

Part	Topology	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Approval Agency	Voltage - Isolation	Features	Efficiency	Number of Outputs	Voltage - Input (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Ratings	Voltage - Output	Termination Style
MEAN WELL USA Inc. LPV-20-24	AC DC Converter	118 mm	26 mm	35 mm	1.38 "	1.02 in	4.65 "	Chassis Mount	CE cURus TUV	3000 V	OCP OVP SCP	83 %	1	264 VAC	Constant Voltage	70 °C	-30 ░C	840 mA	90 VAC	20 W	IP67	24 V	Wire Leads
MEAN WELL USA Inc. LPV-20-12	AC DC Converter	118 mm	26 mm	35 mm	1.38 "	1.02 in	4.65 "	Chassis Mount	CE cURus TUV	3000 V	OCP OVP SCP	81 %	1	264 VAC	Constant Voltage	70 °C	-30 ░C	1.67 A	90 VAC	20 W	IP67	12 V	Wire Leads
MEAN WELL USA Inc. LPV-20-15	AC DC Converter	118 mm	26 mm	35 mm	1.38 "	1.02 in	4.65 "	Chassis Mount	CE cURus TUV	3000 V	OCP OVP SCP	83 %	1	264 VAC	Constant Voltage	70 °C	-30 ░C	1.33 A	90 VAC	20 W	IP67	15 VDC	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.33A 15V Constant Voltage LED Driver AC DC Converter Topology 1 Output
