G125-FV22605L0R
ActiveHarwin Inc.

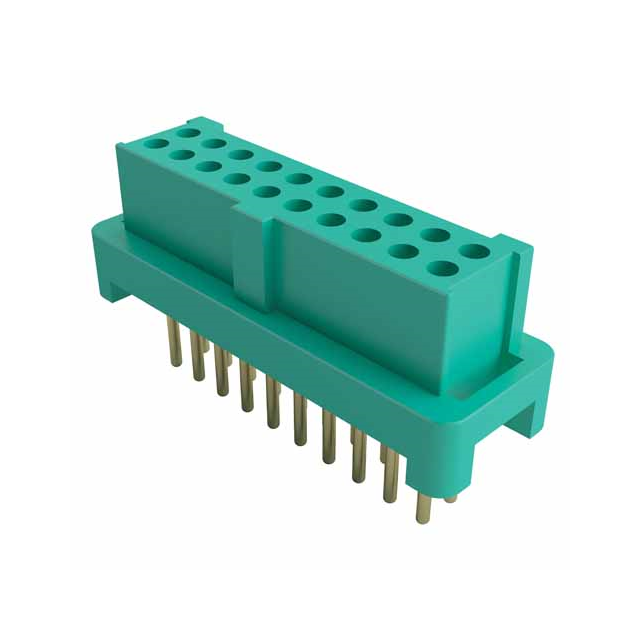

13+13 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. FOR LATCHES (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-FV22605L0R
ActiveHarwin Inc.
13+13 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. FOR LATCHES (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-FV22605L0R |
|---|---|
| Applications | Automotive, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Length - Post | 0.177 in |
| Contact Length - Post | 4.5 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Holder |
| Features | Pick and Place, Polarizing Key |
| Insulation Color | Green |
| Insulation Height | 0.207 in |
| Insulation Height | 5.25 mm |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
G125-FV2 Series
| Part | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Finish - Mating | Insulation Height | Insulation Height | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Applications | Number of Positions | Contact Shape | Pitch - Mating | Pitch - Mating | Connector Type | Insulation Material | Features | Number of Rows | Fastening Type | Contact Type | Number of Positions Loaded | Current Rating (Amps) | Contact Finish - Post | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 0.177 in | 4.5 mm | UL94 V-0 | Gold | 0.207 in | 5.25 mm | Copper Alloy | 0.049 in | 1.25 mm | Automotive General Purpose | 26 | Circular | 1.25 mm | 0.049 in | Receptacle | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Pick and Place Polarizing Key | 2 | Latch Holder | Female Socket | All | 2 A | Gold | Board to Board Cable | 0.203 Ám | 8 Áin | Green | Through Hole | -65 ░C | 150 °C | Solder |
Harwin Inc. | 0.177 in | 4.5 mm | UL94 V-0 | Gold | 0.207 in | 5.25 mm | Copper Alloy | 0.049 in | 1.25 mm | Automotive General Purpose | 6 | Circular | 1.25 mm | 0.049 in | Receptacle | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Pick and Place Polarizing Key | 2 | Latch Holder | Female Socket | All | 2 A | Gold | Board to Board Cable | 0.203 Ám | 8 Áin | Green | Through Hole | -65 ░C | 150 °C | Solder |
Harwin Inc. | 0.177 in | 4.5 mm | UL94 V-0 | Gold | 0.207 in | 5.25 mm | Copper Alloy | 0.049 in | 1.25 mm | Automotive General Purpose | 26 | Circular | 1.25 mm | 0.049 in | Receptacle | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Pick and Place Polarizing Key | 2 | Latch Holder | Female Socket | All | 2 A | Gold | Board to Board Cable | 0.203 Ám | 8 Áin | Green | Through Hole | -65 ░C | 150 °C | Solder |
Harwin Inc. | 0.177 in | 4.5 mm | UL94 V-0 | Gold | 0.207 in | 5.25 mm | Copper Alloy | 0.049 in | 1.25 mm | Automotive General Purpose | 50 | Circular | 1.25 mm | 0.049 in | Receptacle | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Pick and Place Polarizing Key | 2 | Latch Holder | Female Socket | All | 2 A | Gold | Board to Board Cable | 0.203 Ám | 8 Áin | Green | Through Hole | -65 ░C | 150 °C | Solder |
Harwin Inc. | 0.177 in | 4.5 mm | UL94 V-0 | Gold | 0.207 in | 5.25 mm | Copper Alloy | 0.049 in | 1.25 mm | Automotive General Purpose | 20 | Circular | 1.25 mm | 0.049 in | Receptacle | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Pick and Place Polarizing Key | 2 | Latch Holder | Female Socket | All | 2 A | Gold | Board to Board Cable | 0.203 Ám | 8 Áin | Green | Through Hole | -65 ░C | 150 °C | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-FV2 Series
26 Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold
