5601-0-01-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

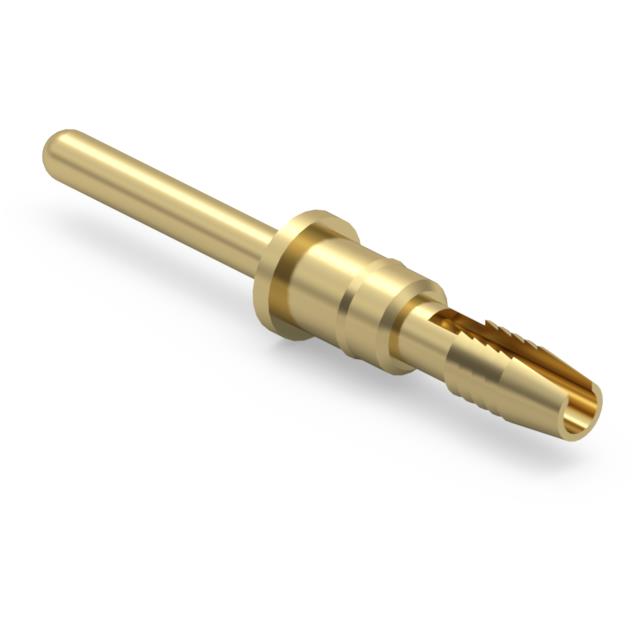

CONN PC PIN CIRC 0.030DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
5601-0-01-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.030DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5601-0-01-15-00-00-03-0 |
|---|---|
| Board Thickness [Max] | 2.54 mm |
| Board Thickness [Max] | 0.1 in |
| Board Thickness [Min] | 0.06 in |
| Board Thickness [Min] | 1.52 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.191 in |
| Length - Above Flange [x] | 4.85 mm |
| Length - Below Flange [x] | 0.203 in |
| Length - Below Flange [x] | 5.16 mm |
| Length - Overall [x] | 0.406 in |
| Length - Overall [x] | 10.3 mm |
| Mounting Hole Diameter [diameter] | 0.04 in |
| Mounting Hole Diameter [diameter] | 1.02 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.03 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.84 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.57 | |||
| 3000 | $ 0.52 | |||
Description
General part information
5601-0 Series
PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia
