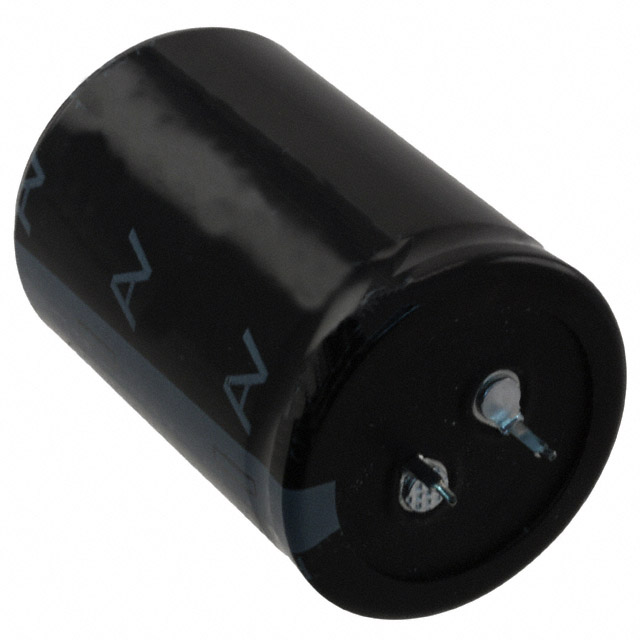

ELG158M250AT6AA

Active

KEMET

CAP ALUMINUM LYTIC 1500UF 250V 20% (35 X 50MM) SNAP-IN 10MM 0.133 OHM 3.63A 2000H 105°C BAG

Search across all available documentation for this part.

Active

KEMET

CAP ALUMINUM LYTIC 1500UF 250V 20% (35 X 50MM) SNAP-IN 10MM 0.133 OHM 3.63A 2000H 105°C BAG

Technical Specifications

Parameters and characteristics for this part

Specification	ELG158M250AT6AA

Applications	General Purpose
Capacitance	1.5 mF
ESR (Equivalent Series Resistance)	66 mOhm
Height - Seated (Max) [Max] [z]	2.047 in
Height - Seated (Max) [Max] [z]	52 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	5.445 A
Ripple Current @ Low Frequency	3.63 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	250 V

Part	Mounting Type	Package / Case	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Tolerance	Ripple Current @ High Frequency	Voltage - Rated
KEMET ELG158M250AT6AA	Through Hole	Radial Can - Snap-In	3.63 A	0.394 in	10 mm	General Purpose	2.047 in	52 mm	1.5 mF	-25 °C	105 ░C	Polar	1.378 in	35 mm	2000 Hrs	66 mOhm	20 %	5.445 A	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1500 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 66mOhm @ 20kHz 2000 Hrs @ 105°C
