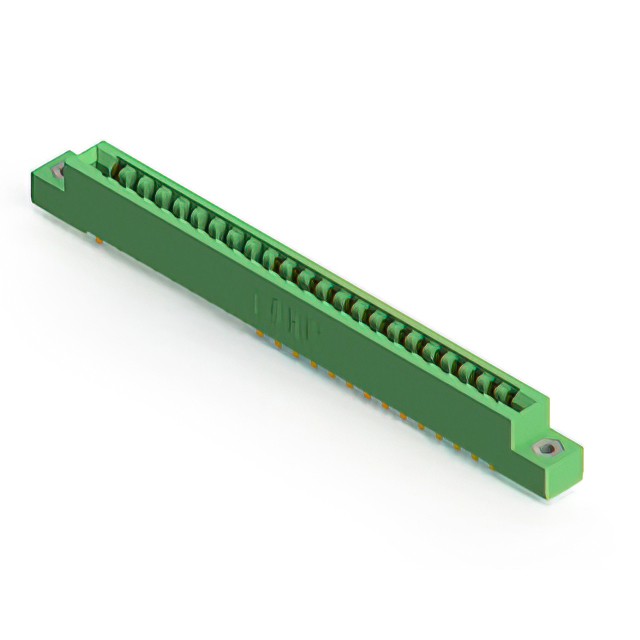

807-046-558-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 46POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-046-558-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 46POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-046-558-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	46
Number of Positions/Bay/Row [custom]	23
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	2

807-046 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Termination Rows	Mounting Type	Card Type	Number of Positions/Bay/Row [custom]	Number of Positions	Color	Contact Finish	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Contact Material	Material - Insulation	Number of Rows	Contact Type	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature
EDAC Inc. 807-046-460-207	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Board Edge Straddle Mount	Non Specified - Dual Edge	23	46	Green	Tin	Card Extender	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 807-046-459-204	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	2	Through Hole Right Angle	Non Specified - Dual Edge	23	46	Green	Tin		Solder	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in
EDAC Inc. 807-046-556-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Board Edge Straddle Mount	Non Specified - Dual Edge	23	46	Green	Gold	Card Extender	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female				10 Áin	0.25 Ám
EDAC Inc. 807-046-558-207	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	2	Through Hole Right Angle	Non Specified - Dual Edge	23	46	Green	Gold		Solder	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female	Flush Mount M3 Threaded Insert Top Opening			10 Áin	0.25 Ám
EDAC Inc. 807-046-500-204	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Through Hole	Non Specified - Dual Edge	23	46	Green	Gold		Solder Eyelet(s)	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	10 Áin	0.25 Ám
EDAC Inc. 807-046-456-202	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Board Edge Straddle Mount	Non Specified - Dual Edge	23	46	Green	Tin	Card Extender	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 807-046-555-212	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Board Edge Straddle Mount	Non Specified - Dual Edge	23	46	Green	Gold	Card Extender	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female	Side Mount Opening Unthreaded			10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 807-046-556-202	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Board Edge Straddle Mount	Non Specified - Dual Edge	23	46	Green	Gold	Card Extender	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 807-046-555-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Board Edge Straddle Mount	Non Specified - Dual Edge	23	46	Green	Gold	Card Extender	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female	4-40 Flush Mount Threaded Insert Top Opening			10 Áin	0.25 Ám
EDAC Inc. 807-046-440-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Through Hole	Non Specified - Dual Edge	23	46	Green	Tin		Wire Wrap	125 °C	-40 °C	0.156 in	3.96 mm	Copper Alloy	Diallyl Phthalate (DAP)	2	Semi Bellows	Female	Floating Bobbin Flush Mount	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 107.86
Newark	Each	1	$ 124.50
		100	$ 101.59
		250	$ 93.41
		500	$ 84.41
		1000	$ 70.50

Description

General part information

807-046 Series

46 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
