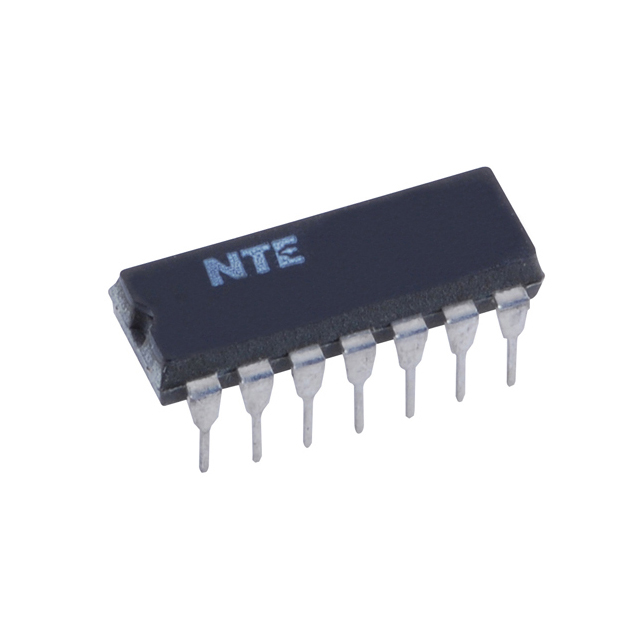

NTE40106B

Active

NTE Electronics, Inc

IC INVERT SCHMITT 6CH 1INP 14DIP

Search across all available documentation for this part.

Active

NTE Electronics, Inc

IC INVERT SCHMITT 6CH 1INP 14DIP

Technical Specifications

Parameters and characteristics for this part

Specification	NTE40106B

Current - Output High, Low [custom]	6.8 mA
Current - Output High, Low [custom]	6.8 mA
Current - Quiescent (Max) [Max]	20 µA
Features	Schmitt Trigger
Input Logic Level - High [Max]	10.8 V
Input Logic Level - High [Min]	3.6 V
Input Logic Level - Low [Max]	4 V
Input Logic Level - Low [Min]	0.9 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	120 ns
Mounting Type	Through Hole
Number of Circuits	6
Number of Inputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Supplier Device Package	14-DIP
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	3 V

Part	Max Propagation Delay @ V, Max CL	Number of Circuits	Current - Quiescent (Max) [Max]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Supplier Device Package	Mounting Type	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Number of Inputs	Package / Case	Package / Case [y]	Package / Case [x]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]
NTE Electronics, Inc NTE40106B	120 ns	6	20 µA	3.6 V	10.8 V	14-DIP	Through Hole	0.9 V	4 V	1	14-DIP	7.62 mm	0.3 "	Schmitt Trigger	-55 °C	125 °C	Inverter	6.8 mA	6.8 mA	18 V	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Inverter IC 6 Channel Schmitt Trigger 14-DIP
