1241.1032.7

Active

SCHURTER Inc.

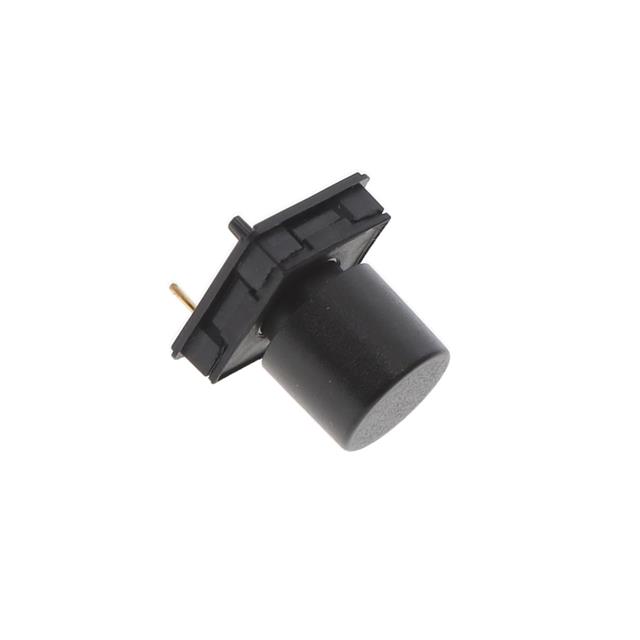

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1241.1032.7	1241.1032 Series

Actuator Height off PCB, Vertical	-	12.25 mm
Actuator Height off PCB, Vertical [z]	13 mm	9.25 - 13 mm
Actuator Material	Polycarbonate (PC)	Polycarbonate (PC)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP40	IP40
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	0.25 kgf	0.25 kgf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Outline [x]	12.65 mm	12.65 mm
Outline [y]	12.65 mm	12.65 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.45 mm	0.45 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Switch Travel	Mechanical Life	Operating Force	Features	Actuator Type	Ingress Protection	Termination Style	Mounting Type	Outline [y]	Outline [x]	Circuit	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Switch Function	Illumination	Contact Rating @ Voltage	Actuator Height off PCB, Vertical
SCHURTER Inc. 1241.1032.4	0.45 mm	1000000 Cycles	0.25 kgf	Tactile Feedback	Standard	IP40	PC Pin	Through Hole	12.65 mm	12.65 mm	SPST-NO	10.75 mm	Top Actuated	-25 °C	85 °C	Polycarbonate (PC)	Off-Mom	Non-Illuminated	0.05 A, 24 VDC
SCHURTER Inc. 1241.1032.3	0.45 mm	1000000 Cycles	0.25 kgf	Tactile Feedback	Standard	IP40	PC Pin	Through Hole	12.65 mm	12.65 mm	SPST-NO	10 mm	Top Actuated	-25 °C	85 °C	Polycarbonate (PC)	Off-Mom	Non-Illuminated	0.05 A, 24 VDC
SCHURTER Inc. 1241.1032.6	0.45 mm	1000000 Cycles	0.25 kgf	Tactile Feedback	Standard	IP40	PC Pin	Through Hole	12.65 mm	12.65 mm	SPST-NO		Top Actuated	-25 °C	85 °C	Polycarbonate (PC)	Off-Mom	Non-Illuminated	0.05 A, 24 VDC	12.25 mm
SCHURTER Inc. 1241.1032.2	0.45 mm	1000000 Cycles	0.25 kgf	Tactile Feedback	Standard	IP40	PC Pin	Through Hole	12.65 mm	12.65 mm	SPST-NO	9.25 mm	Top Actuated	-25 °C	85 °C	Polycarbonate (PC)	Off-Mom	Non-Illuminated	0.05 A, 24 VDC
SCHURTER Inc. 1241.1032.7	0.45 mm	1000000 Cycles	0.25 kgf	Tactile Feedback	Standard	IP40	PC Pin	Through Hole	12.65 mm	12.65 mm	SPST-NO	13 mm	Top Actuated	-25 °C	85 °C	Polycarbonate (PC)	Off-Mom	Non-Illuminated	0.05 A, 24 VDC
