Q-2V0040003003M

Active

Amphenol Custom Cable

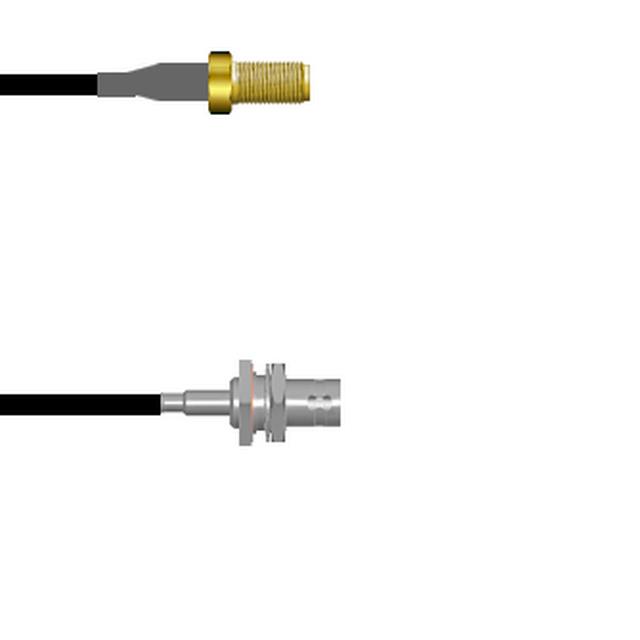

COAX CBL BNC TO SMA 9.8'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL BNC TO SMA 9.8'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2V0040003003M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	BNC to SMA

Part	Length	Length	Length	Frequency - Max [Max]	Features	1st Contact Gender	Overall Impedance	Connector Impedance	2nd Connector	1st Connector	Cable Type	2nd Contact Gender	Cable Impedance	1st Connector Mounting Feature	Style	1st Connector Mounting Type	2nd Connector Mounting Type	Color
Amphenol Custom Cable Q-2V0040003003M	3 m	118.1 in	9.8 '	1 GHz	Shielded	Female	50 Ohms	50 Ohms	SMA Jack	BNC Jack	RG-174	Female	50 Ohms	Bulkhead - Front Side Nut	BNC to SMA	Panel Mount	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2V00400031.5M	1.5 m	59.1 in	4.9 ft	1 GHz	Shielded	Female	50 Ohms	50 Ohms	SMA Jack	BNC Jack	RG-174	Female	50 Ohms	Bulkhead - Front Side Nut	BNC to SMA	Panel Mount	Free Hanging (In-Line)	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMA RG-174 118.1" (3.0m) 9.8'
