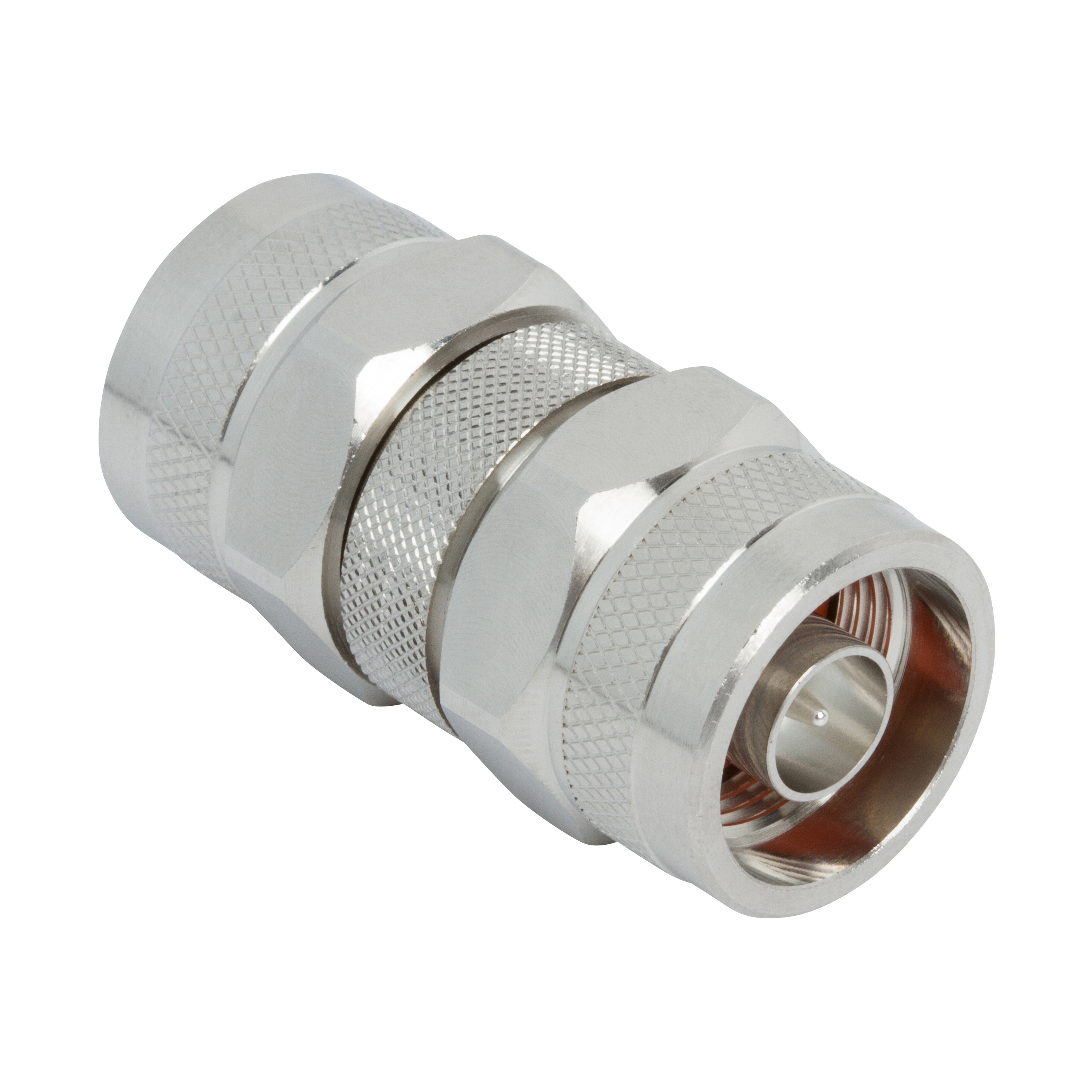

AD-NPNP-2

Active

Amphenol RF

RF / COAXIAL ADAPTER, 18 GHZ, N, PLUG, N, PLUG, STRAIGHT ADAPTER, 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL ADAPTER, 18 GHZ, N, PLUG, N, PLUG, STRAIGHT ADAPTER, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	AD-NPNP-2

Adapter Series	N to N
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Low PIM
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Contact Plating	Mating Cycles	Convert From (Adapter End)	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Center Gender	Impedance	Features	Style	Adapter Type	Frequency - Max [Max]	Conversion Type	Center Contact Material	Body Finish	Mounting Type	Convert To (Adapter End)	Dielectric Material
Amphenol RF AD-NPNP-2	Silver	500	N Plug Male Pin	Brass	-65 ░C	165 °C	N to N	Male to Male	50 Ohms	Low PIM	Straight	Plug to Plug	18 GHz	Same Series	Brass	White Bronze	Free Hanging (In-Line)	Male Pin N Plug	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To N Plug, Male Pin 50 Ohms
