A98100-513

Active

Omnetics

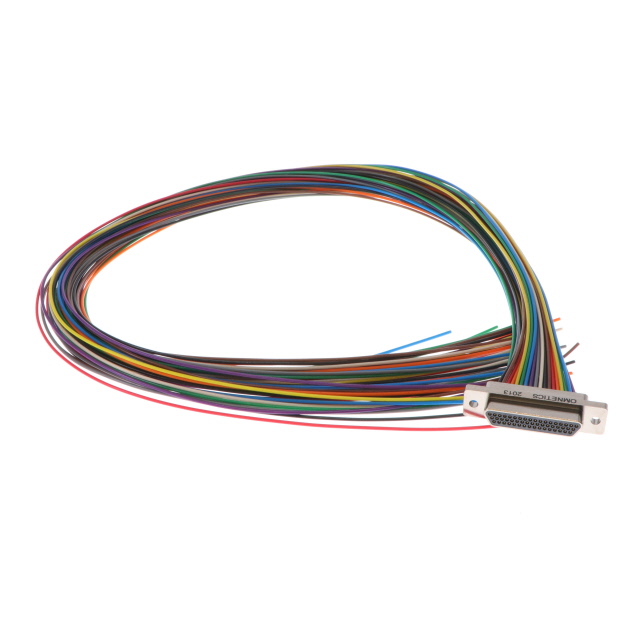

CABLE ASSY MICRO-D 51POS 1.5'

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY MICRO-D 51POS 1.5'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A98100-513	MMDP-051 Series

1st Connector	Plug, Male Pins	Plug, Male Pins
2nd Connector	Individual Wire Leads	Individual Wire Leads
Color	Multiple, Individual	Multiple, Individual
Connector Style	-	Micro-D, D-Type
Connector Type	-	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	-	Stamped
Contact Material	-	Copper Alloy
Contact Type	-	Signal
Current Rating (Amps)	-	3 A
Dielectric Material	-	Thermoplastic
Flange Feature	-	Housing/Shell (Unthreaded)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	51	51
Number of Rows	-	3
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Shell Material, Finish	-	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout	-	0.05
Shell Size, Connector Layout	-	0.05
Shielding	Unshielded	Unshielded
Type	D-Type, Micro-D	D-Type, Micro-D

CABLE ASSY MICRO-D 51POS 1.5'

Part	Contact Finish	Color	Shielding	2nd Connector	Number of Positions	Length [x]	Length [x]	Type	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Mounting Type	Connector Type	Dielectric Material	Connector Style	Flange Feature	Shell Material, Finish	Contact Form	Number of Rows
Omnetics A98100-513	Gold	Individual, Multiple	Unshielded	Individual Wire Leads	51	457.2 mm	1.5 ft	D-Type, Micro-D	50 µin	1.27 µm	Plug, Male Pins
Omnetics A98000-513	Gold				51				50 µin	1.27 µm		0.05	0.05	Copper Alloy	-55 °C	125 °C	3 A	Signal	Free Hanging (In-Line)	Male Pins, Plug	Thermoplastic	D-Type, Micro-D	Housing/Shell (Unthreaded)	Aluminum, Electroless, Nickel Plated	Stamped	3
