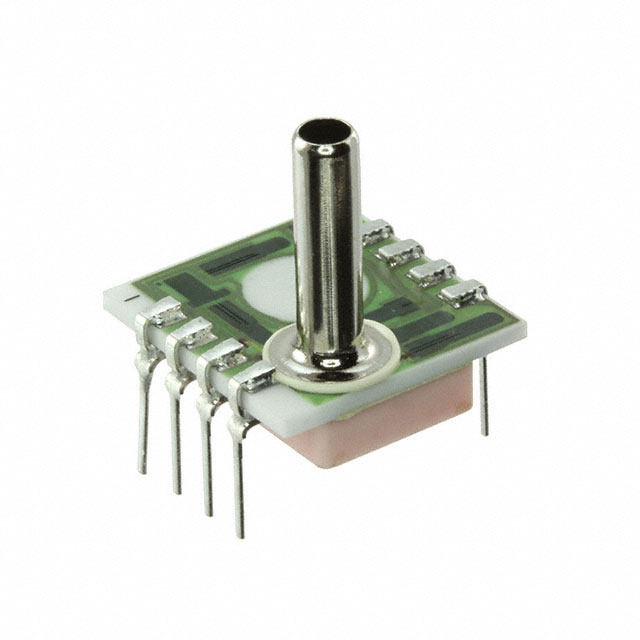

1230-015A-3L

Obsolete

TE Connectivity Measurement Specialties

SENSOR 15PSIA 0.13" 0.1V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1230-015A-3L

Obsolete

TE Connectivity Measurement Specialties

SENSOR 15PSIA 0.13" 0.1V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1230-015A-3L

Accuracy	0.1 %
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure [Max]	310.26 kPa
Maximum Pressure [Max]	45 PSI
Mounting Type	Through Hole
Operating Pressure [custom]	15 PSI
Operating Pressure [custom]	103.42 kPa
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	100 mV
Output [Min]	0 mV
Output Type	Wheatstone Bridge
Package / Case	8-DIP Module
Port Size	0.13 "
Port Size	Male
Port Size	3.23 mm
Port Style	Barbless
Termination Style	PC Pin

1230 Series

Part	Output [Min]	Output [Max]	Package / Case	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Features	Port Size	Port Size	Port Size	Termination Style	Output Type	Operating Pressure	Operating Pressure	Mounting Type	Applications	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure	Maximum Pressure
TE Connectivity Measurement Specialties 1230-030G-3L	0 mV	100 mV	8-DIP Module	Vented Gauge	30 PSI	206.84 kPa	0.1 %	Barbless	125 °C	-40 °C	Temperature Compensated	0.13 "	Male	3.23 mm	PCB	Wheatstone Bridge	206.84 kPa	30 PSI	Through Hole
TE Connectivity Measurement Specialties 1230-030A-3L	0 mV	100 mV	8-DIP Module		30 PSI	206.84 kPa	0.1 %	Barbless	125 °C	-40 °C	Temperature Compensated	0.13 "	Male	3.23 mm	PC Pin	Wheatstone Bridge	206.84 kPa	30 PSI	Through Hole	Board Mount
TE Connectivity Measurement Specialties 1230-100D-3L	0 mV	100 mV	8-DIP Module	Differential	200 PSI	1378.95 kPa	0.1 %	Barbless	125 °C	-40 °C	Temperature Compensated	0.13 "	Dual Male Tube	3.23 mm	PC Pin	Wheatstone Bridge	689.48 kPa	100 PSI	Through Hole	Board Mount
TE Connectivity Measurement Specialties 1230-100A-3L	0 mV	100 mV	8-DIP Module		200 PSI	1378.95 kPa	0.1 %	Barbless	125 °C	-40 °C	Temperature Compensated	0.13 "	Male	3.23 mm	PCB	Wheatstone Bridge	689.48 kPa	100 PSI	Through Hole
TE Connectivity Measurement Specialties 1230-015A-1L	0 mV	100 mV	8-DIP Module		45 PSI	310.26 kPa	0.1 %	Barbless	125 °C	-40 °C	Temperature Compensated	0.13 "	Male	3.23 mm	PC Pin	Wheatstone Bridge			Through Hole	Board Mount	15 PSI	103.42 kPa
TE Connectivity Measurement Specialties 1230-100G-3L			8-DIP Module												PCB				Through Hole
TE Connectivity Measurement Specialties 1230-050A-3L	0 mV	100 mV	8-DIP Module				0.1 %	Barbless	125 °C	-40 °C	Temperature Compensated	0.13 "	Male	3.23 mm	PCB	Wheatstone Bridge	344.74 kPa	50 PSI	Through Hole				344.74 kPa	50 PSI
TE Connectivity Measurement Specialties 1230-015A-3L	0 mV	100 mV	8-DIP Module		45 PSI	310.26 kPa	0.1 %	Barbless	125 °C	-40 °C	Temperature Compensated	0.13 "	Male	3.23 mm	PC Pin	Wheatstone Bridge			Through Hole	Board Mount	15 PSI	103.42 kPa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1230 Series

Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.13" (3.23mm) Tube 0 mV ~ 100 mV 8-DIP Module
