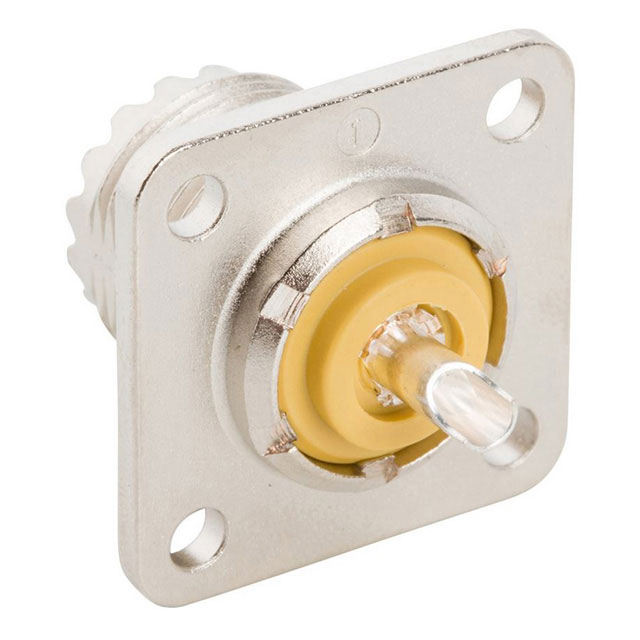

083-1R-4050

Active

Amphenol RF

CONN UHF JACK STR SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN UHF JACK STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	083-1R-4050

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	UHF
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Extended Insulation
Frequency - Max [Max]	300 MHz
Housing Color	Silver
Impedance	Non-Constant
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Frequency - Max [Max]	Connector Style	Dielectric Material	Mating Cycles	Contact Termination	Impedance	Center Contact Material	Voltage Rating	Body Material	Shield Termination	Connector Type	Center Contact Plating	Housing Color	Features	Mounting Feature	Body Finish	Number of Ports
Amphenol RF 083-1R-4050	300 MHz	UHF	Polybutylene Terephthalate (PBT)	500	Solder Cup	Non-Constant	Brass	500 V	Zinc Die Cast	Solder	Female Socket Jack	Silver	Silver	Extended Insulation	Flange	Nickel	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 6.72

General part information

UHF Connector Jack, Female Socket Non-Constant Panel Mount Solder Cup
