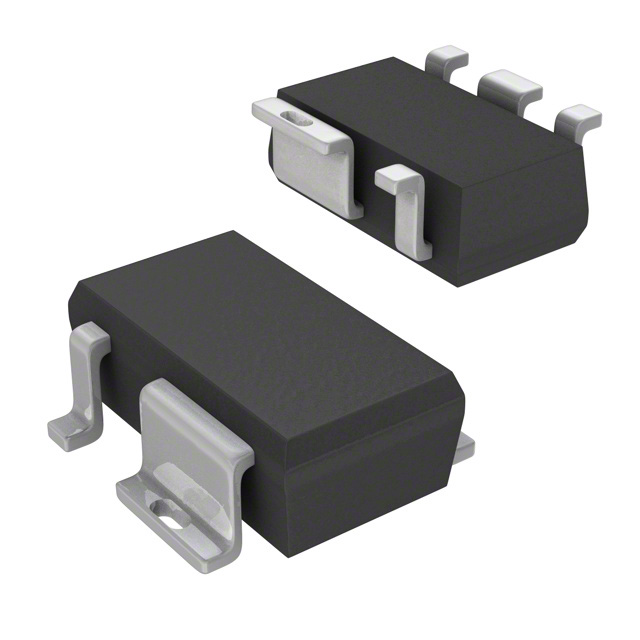

TLE4296GV33HTSA1
THE TLE4296G V33 IS A MONOLITHIC INTEGRATED LOW DROP VOLTAGE REGULATOR IN THE VERY SMALL SMD PACKAGE PG-SCT595-5.
Deep-Dive with AI
Search across all available documentation for this part.
TLE4296GV33HTSA1
THE TLE4296G V33 IS A MONOLITHIC INTEGRATED LOW DROP VOLTAGE REGULATOR IN THE VERY SMALL SMD PACKAGE PG-SCT595-5.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE4296GV33HTSA1 |
|---|---|
| Control Features | Inhibit |
| Current - Output | 30 mA |
| Current - Quiescent (Iq) | 170 µA |
| Current - Supply (Max) [Max] | 5.2 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 6-SMD (5 Leads), Gull Wing |
| Protection Features | Short Circuit, Reverse Polarity, Over Current, Over Temperature |
| PSRR | 60 dB |
| Qualification | AEC-Q100 |
| Supplier Device Package | PG-SCT595-5 |
| Voltage - Input (Max) [Max] | 45 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) [Max] | 0.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TLE4296 Series
It is designed to supply e.g. microprocessor systems under the severe conditions of automotive applications. Therefore the device is equipped with additional protection functions against overload, short circuit and reverse polarity. At over temperature the regulator is automatically turned off by the integrated thermal protection circuit. TLE4296-2G V33is the available version of this product.
