IF13-US3-H05-3100-WF-200
ActiveTE Connectivity Raychem Cable Protection
CORD 18AWG 5-15P TO C13 6.56'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IF13-US3-H05-3100-WF-200
ActiveTE Connectivity Raychem Cable Protection
CORD 18AWG 5-15P TO C13 6.56'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IF13-US3-H05-3100-WF-200 |
|---|---|
| 1st Connector | NEMA 5-15P |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | White |
| Cord Type | H05VV-F |
| Current Rating (Amps) | 10 A |
| Features | Filter |
| Length [x] | 2 m |
| Length [x] | 6.56 ft |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 120 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 43.56 | |
| 10 | $ 39.97 | |||
| 40 | $ 37.15 | |||
| 80 | $ 35.10 | |||
| 280 | $ 34.08 | |||
Description
General part information
IF13-U Series

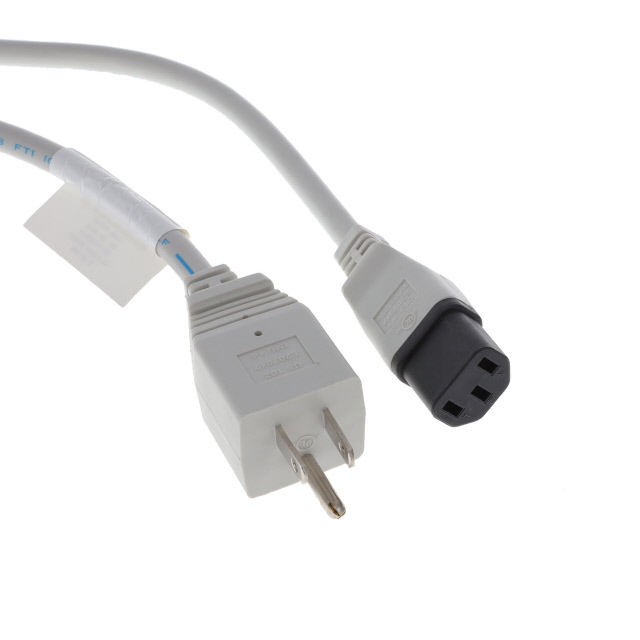

6.56' (2.00m) Power Cord White NEMA 5-15P To IEC 320-C13 H05VV-F
