31-318-RFX
ActiveAmphenol RF
CONN BNC JACK STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
31-318-RFX
ActiveAmphenol RF
CONN BNC JACK STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 31-318-RFX |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |

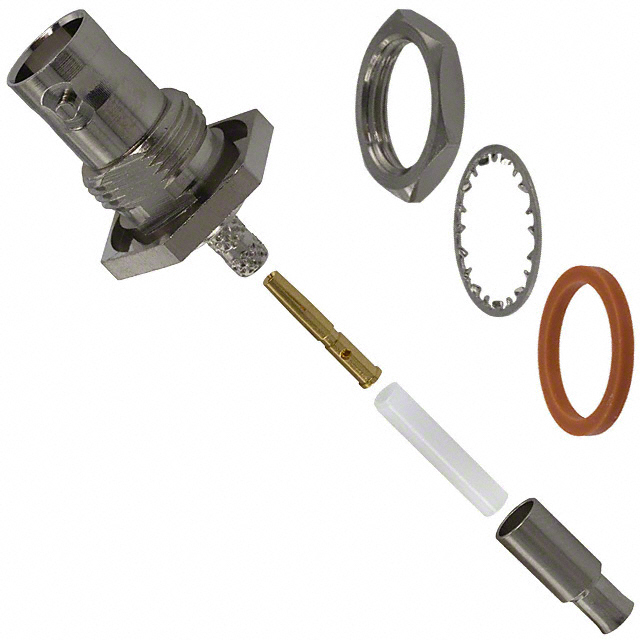

| Includes | 1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.43 | |
| 10 | $ 7.62 | |||
| 25 | $ 7.20 | |||
| 50 | $ 7.02 | |||
| 100 | $ 6.67 | |||
| 250 | $ 5.97 | |||
| 500 | $ 5.62 | |||
| 1000 | $ 4.92 | |||
Description
General part information
31-318 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
