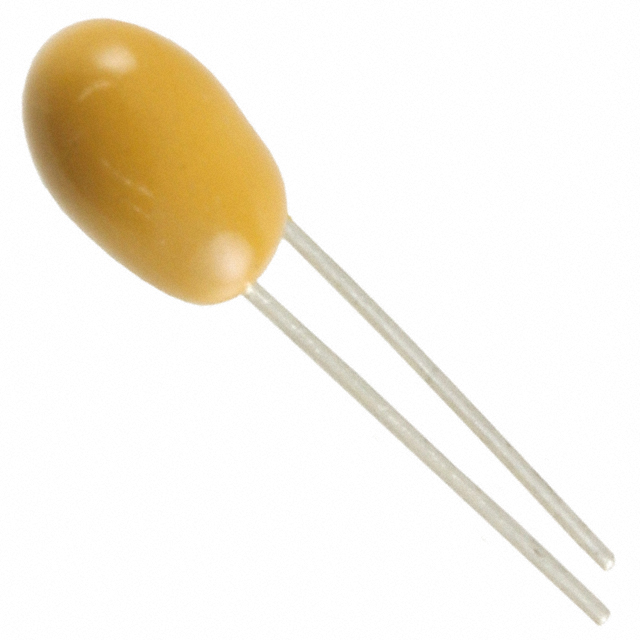

T350F685K035AS

Active

KEMET

CAP, TANTALUM, 6.8UF, 35VDC, RADIAL ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T350F685K035AS

T350F685K035AS

Active

KEMET

CAP, TANTALUM, 6.8UF, 35VDC, RADIAL ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet T350F685K035AS

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T350F685K035AS

Capacitance	6.8 ÁF
ESR (Equivalent Series Resistance)	2.5 Ohm
Features	General Purpose
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Manufacturer Size Code	F
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	6 mm
Size / Dimension [diameter]	0.236 in
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	35 V

T350F Series

Part	Tolerance	Manufacturer Size Code	Mounting Type	Type	Voltage - Rated	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Capacitance
KEMET T350F685K035AT	10 %	F	Through Hole	Conformal Coated	35 V	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm	2.5 Ohm	6.8 ÁF
KEMET T350F156K020AT	10 %	F	Through Hole	Conformal Coated	20 V	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm	2.3 Ohm	15 µF
KEMET T350F335M050AT	20 %	F	Through Hole	Conformal Coated	50 VDC	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm	3 Ohm	3.3 µF
KEMET T350F335K050AS	10 %	F	Through Hole	Conformal Coated	50 VDC	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm	3 Ohm	3.3 µF
KEMET T350F476K006AT	10 %	F	Through Hole	Conformal Coated	6.3 V	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm	2 Ohms	47 µF
KEMET T350F336K010AS	10 %	F	Through Hole	Conformal Coated	10 V	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm	2.1 Ohm	33 ÁF
KEMET T350F226K016AS	10 %	F	Through Hole	Conformal Coated	16 V	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm	2 Ohms	22 µF
KEMET T350F476K006AS	10 %	F	Through Hole	Conformal Coated	6.3 V	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm	2 Ohms	47 µF
KEMET T350F685M035AT	20 %	F	Through Hole	Conformal Coated	35 V	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm		6.8 ÁF
KEMET T350F685K035AS	10 %	F	Through Hole	Conformal Coated	35 V	General Purpose	-55 °C	125 °C	6 mm	0.236 in	Radial	0.1 in	2.54 mm	2.5 Ohm	6.8 ÁF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.71
		10	$ 3.39
		50	$ 2.87
		100	$ 2.70
		500	$ 2.43
		1000	$ 2.34
		2500	$ 2.25
Newark	Each (Supplied on Full Reel)	1	$ 3.02
		2	$ 2.90
		4	$ 2.79
		6	$ 2.68
		10	$ 2.57
