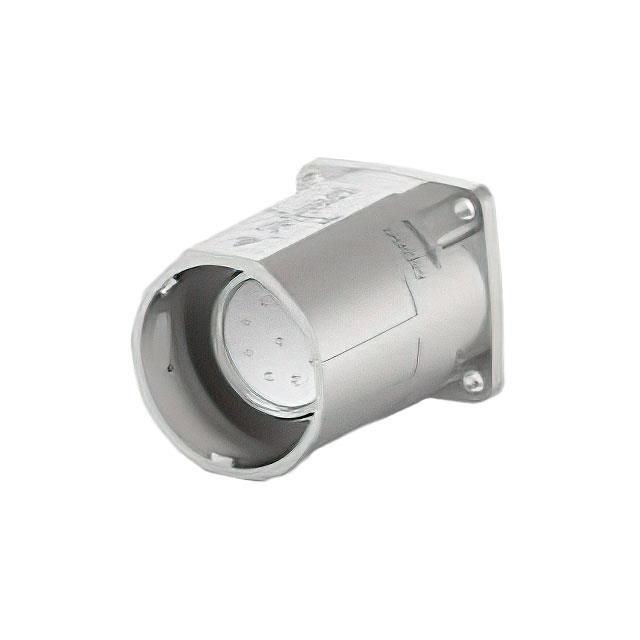

ADA055N00000101000

Active

TE Intercontec

CONN PLG HSG FMALE 9POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 9POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	ADA055N00000101000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Coupling Nut
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Unshielded
Type	For Female Sockets

CONN PLG HSG FMALE 9POS PNL MT

Part	Contact Shape	Connector Type	Mounting Feature	Ingress Protection	Insert Material	Orientation	Shell Material	Features	Material Flammability Rating	Includes	Fastening Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Type	Shielding	Shell Finish	Number of Positions	Note
TE Intercontec ADA055N00000101000	Circular	Plug Housing	Flange	IP66/IP67	Polybutylene Terephthalate (PBT)	Keyed	Zinc Die Cast	Coupling Nut	UL94 V-0	1 Connector, 1 O-Ring	Push-Twist	Silver	-20 C	130 °C	For Female Sockets	Unshielded	Nickel	9	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug Housing Panel Mount Coupling Nut
