E3MSCB

Active

Switchcraft Inc.

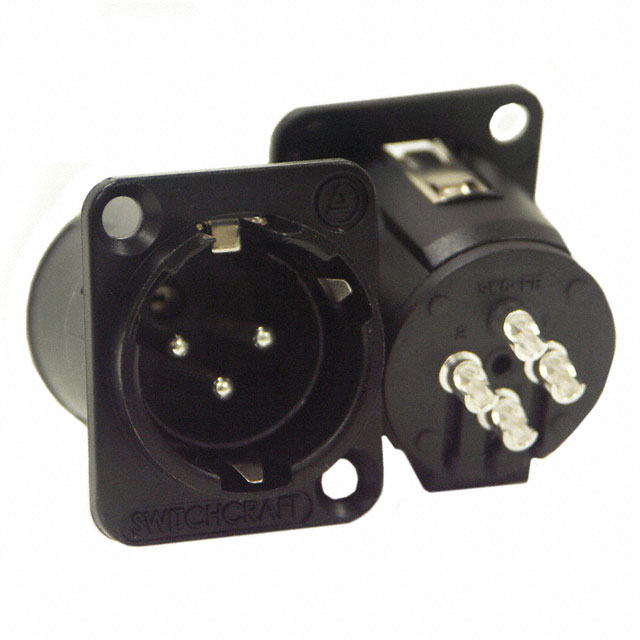

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

E3MSCB

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 5.58

Description

General part information

E3MS Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E3MSCB	E3MS Series

Applications	Audio, Instrumentation	Audio, Instrumentation
Color	Black	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Insert
Contact Finish - Mating	Silver	Silver, Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	15 A	15 A
Fastening Type	Latch Lock	Latch Lock
Features	Ground	Ground, Insert Only, Requires Shell
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Flange	Flange
Mounting Type	-	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Nickel, Chrome
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded
Termination	-	Screw, Solder

E3MS Series

CONN RCPT MALE XLR 3P SILV SCREW

Part	Current Rating (Amps)	Shell Size - Insert	Applications	Contact Material	Shielding	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Primary Material	Contact Finish - Mating	Connector Type	Insert Material	Fastening Type	Termination	Features	Mounting Feature	Shell Finish	Orientation	Mounting Type
Switchcraft Inc. E3MSW	15 A	XLR	Audio, Instrumentation	Copper Alloy	Shielded	Silver	85 °C	-55 °C	Zinc Die Cast	Metal	Silver	Male Pins, Receptacle	Thermoplastic	Latch Lock	Screw	Ground	Flange	Nickel	Keyed
Switchcraft Inc. E3MSC	15 A	XLR	Audio, Instrumentation	Copper Alloy	Shielded	Silver	85 °C	-55 °C	Zinc Die Cast	Metal	Silver	Male Pins, Receptacle	Thermoplastic	Latch Lock		Ground	Flange	Nickel	Keyed
Switchcraft Inc. E3MST	15 A	XLR	Audio, Instrumentation	Copper Alloy	Shielded	Silver	85 °C	-55 °C	Zinc Die Cast	Metal	Silver	Male Pins, Receptacle	Thermoplastic	Latch Lock	Solder	Ground	Flange	Nickel	Keyed	Panel Mount, Through Hole
Switchcraft Inc. E3MSTBAU	15 A	XLR	Audio, Instrumentation	Copper Alloy	Shielded	Black	85 °C	-55 °C	Zinc Die Cast	Metal	Gold	Male Pins, Receptacle	Thermoplastic	Latch Lock	Solder	Ground	Flange	Chrome	Keyed	Panel Mount, Through Hole
Switchcraft Inc. E3MSTAU	15 A	XLR	Audio, Instrumentation	Copper Alloy	Shielded	Silver	85 °C	-55 °C	Zinc Die Cast	Metal	Gold	Male Pins, Receptacle	Thermoplastic	Latch Lock	Solder	Ground	Flange	Nickel	Keyed	Panel Mount, Through Hole
Switchcraft Inc. E3MSCQG	15 A	XLR	Audio, Instrumentation	Copper Alloy			85 °C	-55 °C			Silver	Insert, Male Pins	Thermoplastic			Insert Only, Requires Shell			Keyed
Switchcraft Inc. E3MSWEL	15 A	XLR	Audio, Instrumentation	Copper Alloy	Shielded	Silver	85 °C	-55 °C	Zinc Die Cast	Metal	Silver	Male Pins, Receptacle	Thermoplastic	Latch Lock	Screw	Ground	Flange	Nickel	Keyed
Switchcraft Inc. E3MSCB	15 A	XLR	Audio, Instrumentation	Copper Alloy	Shielded	Black	85 °C	-55 °C	Zinc Die Cast	Metal	Silver	Male Pins, Receptacle	Thermoplastic	Latch Lock		Ground	Flange	Chrome	Keyed
