306-026-500-103

Active

EDAC Inc.

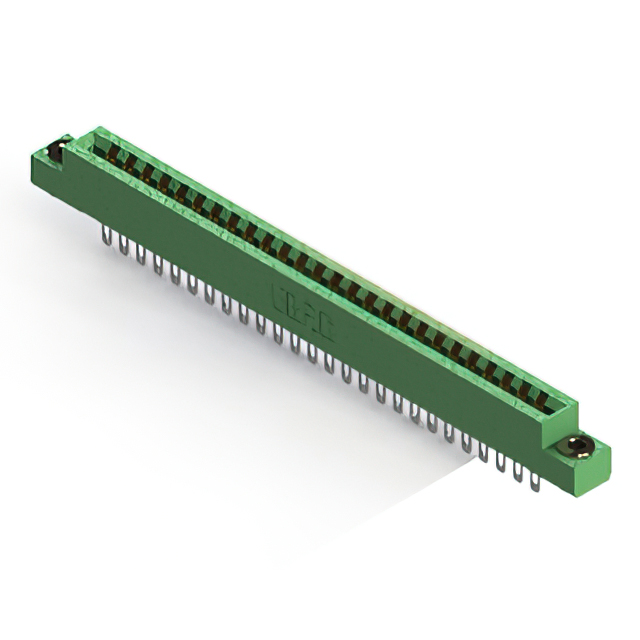

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

306-026-500-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-026-500-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	52
Number of Positions/Bay/Row [custom]	26
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

306-026 Series

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Material - Insulation	Number of Rows	Number of Positions/Bay/Row [custom]	Number of Positions	Contact Type	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Flange Feature	Termination	Pitch [x]	Pitch [x]	Card Type	Mounting Type	Read Out	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 306-026-421-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	Dual	Female
EDAC Inc. 306-026-400-112	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy	Flush Mount Side Opening Unthreaded	Solder Eyelet(s)	0.156 in	3.96 mm	Non Specified - Dual Edge		Dual	Female	3.25 mm	0.128 "
EDAC Inc. 306-026-521-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy	Flush Mount Top Opening Unthreaded	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	Dual	Female	3.96 mm	0.156 in	10 Áin	0.25 Ám
EDAC Inc. 306-026-420-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy	Floating Bobbin Flush Mount	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	Dual	Female	2.95 mm	0.116 in
EDAC Inc. 306-026-521-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	Dual	Female			10 Áin	0.25 Ám
EDAC Inc. 306-026-400-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy		Solder Eyelet(s)	0.156 in	3.96 mm	Non Specified - Dual Edge	Free Hanging (In-Line)	Dual	Female
EDAC Inc. 306-026-521-178	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	Dual	Female			10 Áin	0.25 Ám	Card Guides
EDAC Inc. 306-026-500-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy	Flush Mount Top Opening Unthreaded	Solder Eyelet(s)	0.156 in	3.96 mm	Non Specified - Dual Edge		Dual	Female	3.96 mm	0.156 in	10 Áin	0.25 Ám
EDAC Inc. 306-026-400-168	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	0.156 in	3.96 mm	Non Specified - Dual Edge		Dual	Female					Card Guides
EDAC Inc. 306-026-500-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Polyester Thermoplastic	2	26	52	Cantilever	1	-40 °C	105 ░C	Green	Copper Alloy	Floating Bobbin Flush Mount	Solder Eyelet(s)	0.156 in	3.96 mm	Non Specified - Dual Edge		Dual	Female	2.95 mm	0.116 in	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.04
Newark	Each	1	$ 19.04
		100	$ 11.64
		250	$ 9.71
		500	$ 8.77
		1000	$ 7.42

Description

General part information

306-026 Series

52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
