424-047-542-112

Active

EDAC Inc.

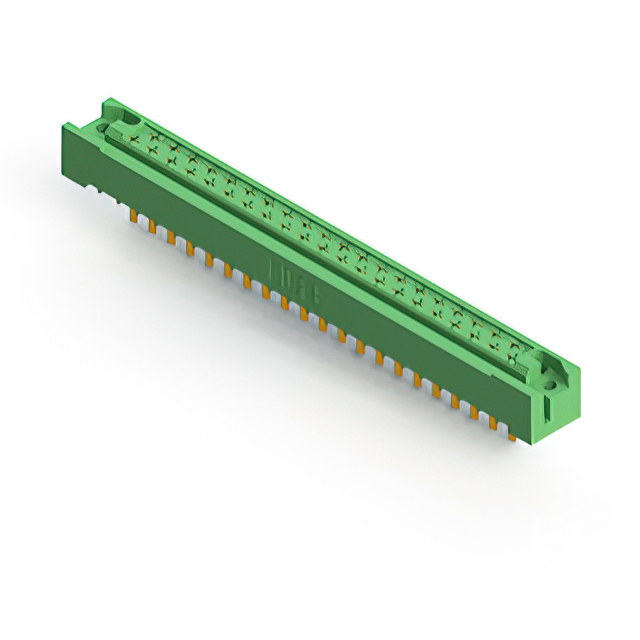

CARD EDGE CONNECTOR, 47 CONTACT(S), 2 ROW(S), HERMAPHRODITIC, 0.2 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

424-047-542-112

Active

EDAC Inc.

CARD EDGE CONNECTOR, 47 CONTACT(S), 2 ROW(S), HERMAPHRODITIC, 0.2 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	424-047-542-112

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Wire Wrap
Termination Rows	2

424-047 Series

Part	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Contact Material	Card Thickness	Card Thickness	Mounting Type	Pitch [x]	Pitch [x]	Material - Insulation	Number of Rows	Color	Card Type	Contact Finish	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature
EDAC Inc. 424-047-522-112	Solder	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.062 in	1.57 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 424-047-541-122	Wire Wrap	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.093 in	2.36 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 424-047-521-112	Solder	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.062 in	1.57 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 424-047-540-112	Wire Wrap	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.062 in	1.57 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 424-047-522-122	Solder	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.093 in	2.36 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 424-047-520-112	Solder	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.062 in	1.57 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 424-047-542-112	Wire Wrap	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.062 in	1.57 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 424-047-523-112	Solder	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.062 in	1.57 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 424-047-523-122	Solder	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.093 in	2.36 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 424-047-524-122	Solder	125 °C	-65 ░C	10 Áin	0.25 Ám	2	Copper Alloy	0.093 in	2.36 mm	Panel Mount Through Hole	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	2	Green	Non Specified - Dual Edge	Gold	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 51.90
Newark	Each	1	$ 62.29
		100	$ 47.22
		250	$ 41.13
		500	$ 31.70
		1000	$ 28.22

Description

General part information

424-047 Series

47 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
