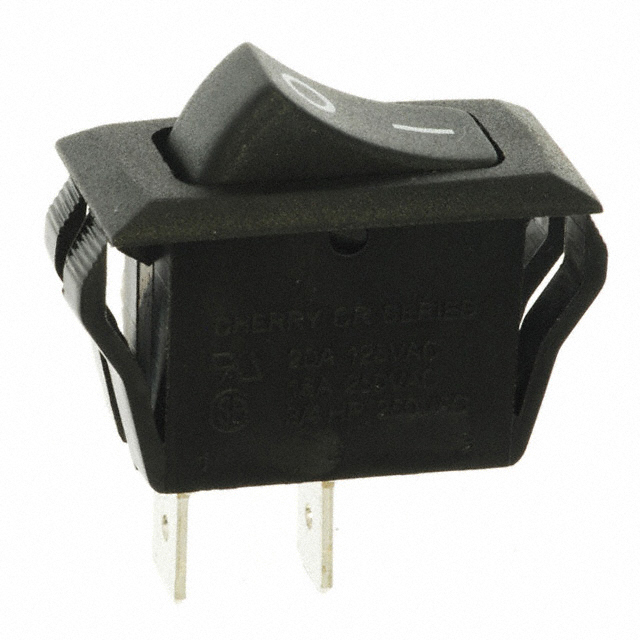

CRE22F2FBBNE
ActiveZF Electronics
SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 100000CYCLES
Deep-Dive with AI
Search across all available documentation for this part.
CRE22F2FBBNE
ActiveZF Electronics
SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 100000CYCLES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CRE22F2FBBNE |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [y] | 12.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CRE22F2F Series
Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In
