NJW4184DL3-08A-TE2

Active

Nisshinbo Micro Devices Inc

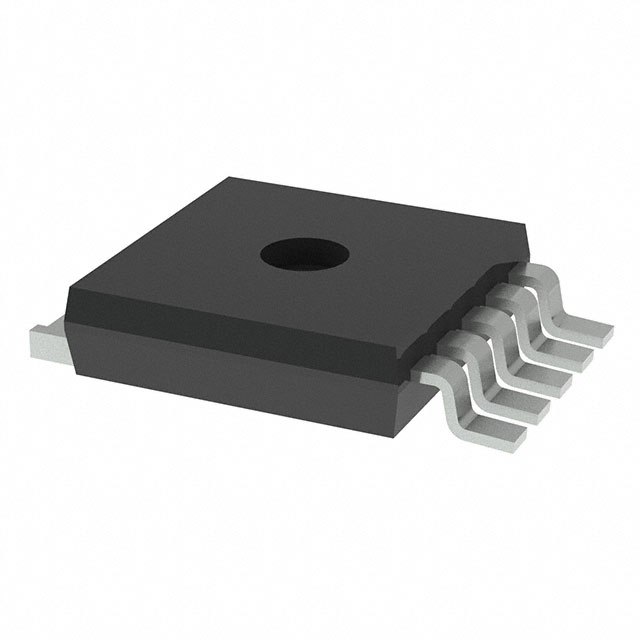

IC REG LINEAR 8V 300MA TO252-5

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NJW4184DL3-08A-TE2

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 8V 300MA TO252-5

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NJW4184DL3-08A-TE2

Control Features	Enable
Current - Output	300 mA
Current - Quiescent (Iq)	12 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-252-6, DPAK (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	33 dB
Supplier Device Package	TO-252-5
Voltage - Input (Max) [Max] [custom]	35 V
Voltage - Output (Min/Fixed)	8 V
Voltage Dropout (Max) [Max]	0.1 V

NJW4184 Series

Part	Output Configuration	Mounting Type	Supplier Device Package	Current - Output	Protection Features	Number of Regulators	Output Type	Voltage - Output (Min/Fixed)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	PSRR	Voltage Dropout (Max) [Max]	Voltage - Input (Max) [Max] [custom]	Current - Quiescent (Iq)	Control Features
Nisshinbo Micro Devices Inc NJW4184DL1-33B-TE2	Positive	Surface Mount	TO-252-3	300 mA	Over Current	1	1.81 mOhm	3.3 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	85 °C	-40 °C	40 dB	0.1 V	35 V	9 µA
Nisshinbo Micro Devices Inc NJW4184DL1-25B-TE2	Positive	Surface Mount	TO-252-3	300 mA	Over Current Over Temperature	1	1.81 mOhm	2.5 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	85 °C	-40 °C	42 dB	0.1 V	35 V	9 µA
Nisshinbo Micro Devices Inc NJW4184U2-15A-TE2	Positive	Surface Mount	SOT-89-5	300 mA	Over Current Over Temperature	1	1.81 mOhm	15 V	SOT-89-5/6	85 °C	-40 °C	29 dB	0.1 V	35 V	12 µA	Enable
Nisshinbo Micro Devices Inc NJW4184DL1-05B-TE2	Positive	Surface Mount	TO-252-3	300 mA	Over Current Over Temperature	1	1.81 mOhm	5 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	85 °C	-40 °C	36 dB	0.1 V	35 V	9 µA
Nisshinbo Micro Devices Inc NJW4184DL3-05A-TE2	Positive	Surface Mount	TO-252-5	300 mA	Over Current Over Temperature	1	1.81 mOhm	5 V	TO-252-6 DPAK (5 Leads + Tab)	85 °C	-40 °C	36 dB	0.1 V	35 V	12 µA	Enable
Nisshinbo Micro Devices Inc NJW4184U3-05B-TE2	Positive	Surface Mount	SOT-89-3	300 mA	Over Current Over Temperature	1	1.81 mOhm	5 V	TO-243AA	85 °C	-40 °C	36 dB	0.1 V	35 V	9 µA
Nisshinbo Micro Devices Inc NJW4184U2-08A-TE2	Positive	Surface Mount	SOT-89-5	300 mA	Over Current Over Temperature	1	1.81 mOhm	8 V	SOT-89-5/6	85 °C	-40 °C	33 dB	0.1 V	35 V	12 µA	Enable
Nisshinbo Micro Devices Inc NJW4184U2-33A-TE2	Positive	Surface Mount	SOT-89-5	300 mA	Over Current	1	1.81 mOhm	3.3 V	SOT-89-5/6	85 °C	-40 °C	40 dB	0.1 V	35 V	12 µA	Enable
Nisshinbo Micro Devices Inc NJW4184DL1-15B-TE2	Positive	Surface Mount	TO-252-3	300 mA	Over Current Over Temperature	1	1.81 mOhm	15 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	85 °C	-40 °C	29 dB	0.1 V	35 V	9 µA
Nisshinbo Micro Devices Inc NJW4184DL3-08A-TE2	Positive	Surface Mount	TO-252-5	300 mA	Over Current Over Temperature	1	1.81 mOhm	8 V	TO-252-6 DPAK (5 Leads + Tab)	85 °C	-40 °C	33 dB	0.1 V	35 V	12 µA	Enable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.62
		6000	$ 0.59
		15000	$ 0.57

Description

General part information

NJW4184 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA TO-252-5

Documents

Technical documentation and resources
