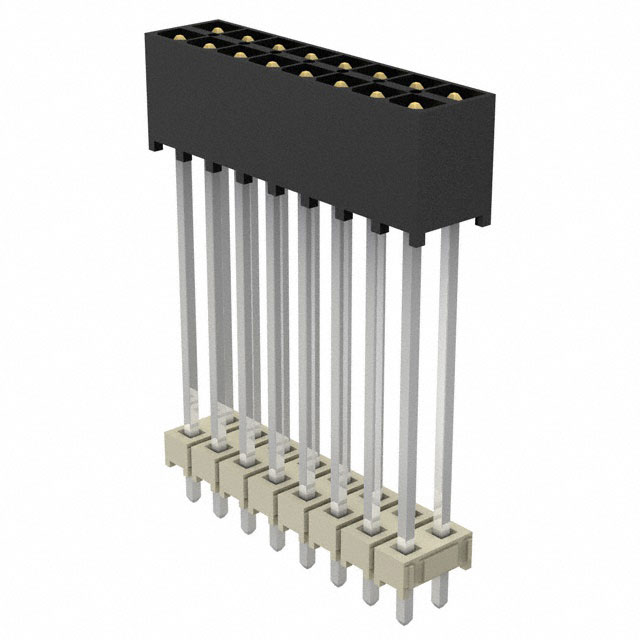

IPT1-107-08-S-D

Active

Samtec Inc.

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IPT1-107-08-S-D

Active

Samtec Inc.

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT1-107-08-S-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.94 mm
Contact Length - Mating	0.155 in
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.996 "
Insulation Height	25.29 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	27.69 mm
Overall Contact Length	1.09 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPT1-107 Series

Part	Insulation Material	Contact Type	Contact Finish - Mating	Insulation Color	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Rows	Number of Positions	Termination	Contact Shape	Fastening Type	Contact Material	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Shrouding	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Insulation Height [z]	Insulation Height [z]
Samtec Inc. IPT1-107-01-SM-D-RA	Liquid Crystal Polymer (LCP)	Male Pin	Gold	Black	2.3 A	0.09 "	2.29 mm	Tin	2	14	Solder	Square	Push-Pull	Phosphor Bronze	UL94 V-0	All	30 Áin	0.76 Ám	-55 °C	125 °C	775 VAC 1095 VDC	Through Hole Right Angle	Shrouded - 4 Wall	0.1 in	2.54 mm	2.54 mm	0.1 in	Header	3.94 mm	0.155 in
Samtec Inc. IPT1-107-06-L-D	Liquid Crystal Polymer (LCP)	Male Pin	Gold	Black	2.3 A	0.093 in	2.35 mm	Tin	2	14	Solder	Square	Push-Pull	Phosphor Bronze	UL94 V-0	All	10 çin	0.25 çm	-55 °C	125 °C	775 VAC 1095 VDC	Through Hole	Shrouded - 4 Wall	0.1 in	2.54 mm	2.54 mm	0.1 in	Header	3.94 mm	0.155 in	0.695 in	17.65 mm	15.29 mm	0.602 in
Samtec Inc. IPT1-107-09-L-D	Liquid Crystal Polymer (LCP)	Male Pin	Gold	Black	2.3 A	0.097 in	2.47 mm	Tin	2	14	Solder	Square	Push-Pull	Phosphor Bronze	UL94 V-0	All	10 çin	0.25 çm	-55 °C	125 °C	775 VAC 1095 VDC	Through Hole	Shrouded - 4 Wall	0.1 in	2.54 mm	2.54 mm	0.1 in	Header	3.94 mm	0.155 in			30.3 mm	1.193 "
Samtec Inc. IPT1-107-07-L-D	Liquid Crystal Polymer (LCP)	Male Pin	Gold	Black	2.3 A	0.091 in	2.3 mm	Tin	2	14	Solder	Square	Push-Pull	Phosphor Bronze	UL94 V-0	All	10 çin	0.25 çm	-55 °C	125 °C	775 VAC 1095 VDC	Through Hole	Shrouded - 4 Wall	0.1 in	2.54 mm	2.54 mm	0.1 in	Header	3.94 mm	0.155 in	0.89 in	22.61 mm			20.3 mm	0.799 in
Samtec Inc. IPT1-107-01-S-D-RA	Liquid Crystal Polymer (LCP)	Male Pin	Gold	Black	2.3 A	0.09 "	2.29 mm	Tin	2	14	Solder	Square	Push-Pull	Phosphor Bronze	UL94 V-0	All	30 Áin	0.76 Ám	-55 °C	125 °C	775 VAC 1095 VDC	Through Hole Right Angle	Shrouded - 4 Wall	0.1 in	2.54 mm	2.54 mm	0.1 in	Header	3.94 mm	0.155 in
Samtec Inc. IPT1-107-08-S-D	Liquid Crystal Polymer (LCP)	Male Pin	Gold	Black	2.3 A	0.094 in	2.4 mm	Tin	2	14	Solder	Square	Push-Pull	Phosphor Bronze	UL94 V-0	All	30 Áin	0.76 Ám	-55 °C	125 °C	775 VAC 1095 VDC	Through Hole	Shrouded - 4 Wall	0.1 in	2.54 mm	2.54 mm	0.1 in	Header	3.94 mm	0.155 in	1.09 in	27.69 mm	25.29 mm	0.996 "
Samtec Inc. IPT1-107-01-S-D	Liquid Crystal Polymer (LCP)	Male Pin	Gold	Black	2.3 A	0.085 in	2.16 mm	Tin	2	14	Solder	Square	Push-Pull	Phosphor Bronze	UL94 V-0	All	30 Áin	0.76 Ám	-55 °C	125 °C	775 VAC 1095 VDC	Through Hole	Shrouded - 4 Wall	0.1 in	2.54 mm	2.54 mm	0.1 in	Header	3.94 mm	0.155 in	0.335 in	8.51 mm	6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 6.06

Description

General part information

IPT1-107 Series

Connector Header Through Hole 14 position 0.100" (2.54mm)
