333-034-521-112

Active

EDAC Inc.

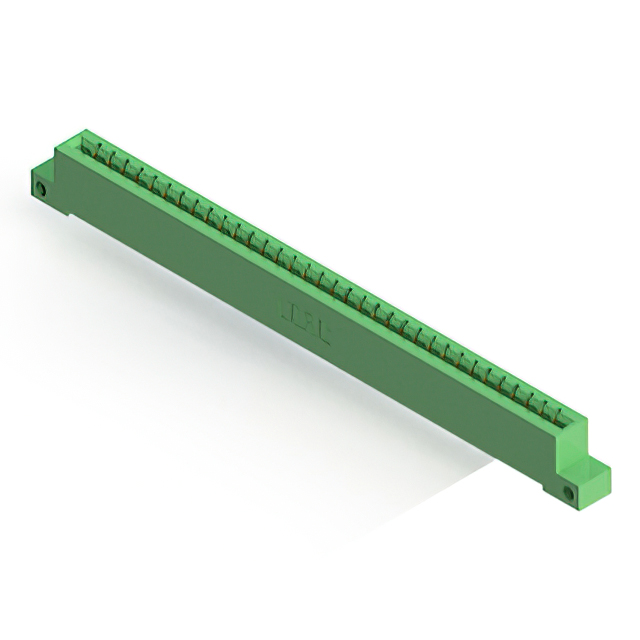

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

333-034-521-112

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-034-521-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	34
Number of Positions/Bay/Row [custom]	34
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

333-034 Series

...

Part	Gender	Number of Positions	Card Type	Number of Rows	Termination	Number of Positions/Bay/Row [custom]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Mounting Type	Pitch [x]	Pitch [x]	Color	Material - Insulation	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Flange Feature	Flange Feature	Features
EDAC Inc. 333-034-524-603	Female	34	Non Specified - Single Edge	1	Solder	34	Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	1	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Through Hole	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 333-034-521-202	Female	34	Non Specified - Dual Edge	2	Solder		Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Through Hole	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 333-034-558-612	Female	34	Non Specified - Single Edge	1	Wire Wrap	34	Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	1	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Through Hole Right Angle	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold		Side Mount Opening Unthreaded		3.25 mm	0.128 in
EDAC Inc. 333-034-542-604	Female	34	Non Specified - Single Edge	1	Wire Wrap	34	Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	1	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Through Hole	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold	3.96 mm	Top Mount Opening Unthreaded	0.156 in
EDAC Inc. 333-034-555-201	Female	34	Non Specified - Dual Edge	2	Solder Eyelet(s)		Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Board Edge Straddle Mount	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold						Card Extender
EDAC Inc. 333-034-559-608	Female	34	Non Specified - Single Edge	1	Solder	34	Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	1	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Through Hole Right Angle	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 333-034-521-602	Female	34	Non Specified - Single Edge	1	Solder	34	Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	1	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Through Hole	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold				3.25 mm	0.128 in
EDAC Inc. 333-034-521-204	Female	34	Non Specified - Dual Edge	2	Solder		Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Through Hole	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 333-034-558-602	Female	34	Non Specified - Single Edge	1	Wire Wrap	34	Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	1	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Through Hole Right Angle	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold				3.25 mm	0.128 in
EDAC Inc. 333-034-521-112	Female	34	Non Specified - Single Edge	1	Solder	34	Copper Alloy	10 Áin	0.25 Ám	-40 °C	105 ░C	1	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Through Hole	0.156 in	3.96 mm	Green	Polyester Thermoplastic	Gold	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 8.86
Newark	Each	25	$ 17.43
		50	$ 16.86
		100	$ 15.74
		250	$ 15.18
		500	$ 14.34

Description

General part information

333-034 Series

34 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
