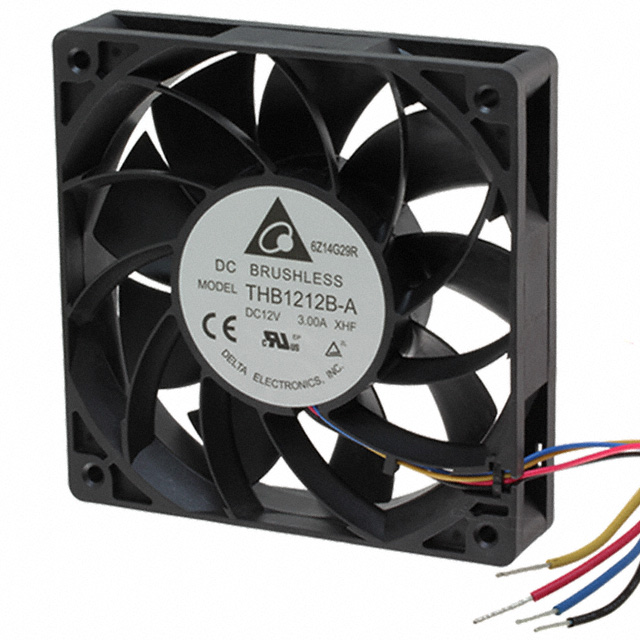

THB1212B-AXHF

Active

Delta Electronics

FAN AXIAL 120X25.4MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 120X25.4MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THB1212B-AXHF

Air Flow	5.16 m³/min
Air Flow	184.2 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	19.2 W
RPM	5300 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	223.9 Pa
Static Pressure	0.899 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	7 V
Weight	198 g
Weight	0.437 lb
Width [y]	25.4 mm

FAN AXIAL 120X25.4MM 12VDC WIRE

Part	Power (Watts)	Weight	Weight	Approval Agency	Noise	Size / Dimension [y]	Size / Dimension [x]	Termination	Material - Frame	Static Pressure	Static Pressure	Air Flow	Air Flow	Material - Blade	Voltage - Rated	Features	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Fan Type	Bearing Type	Current Rating (Amps)	RPM
Delta Electronics THB1212B-AXHF	19.2 W	198 g	0.437 lb	CE, cURus, TUV	59 dB(A)	120 mm	120 mm	4 Wire Leads	Plastic	223.9 Pa	0.899 in H2O	5.16 m³/min	184.2 CFM	Plastic	12 VDC	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	70000 Hrs	7 V	15 V	70 °C	70 °C	-10 °C	-10 °C	25.4 mm	Tubeaxial	Ball	1.6 A	5300 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 184.2 CFM (5.16m³/min) 4 Wire Leads
