STEVAL-OET005VD
ActiveEVALUATION KIT, USB PROTECTION ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
STEVAL-OET005VD
ActiveEVALUATION KIT, USB PROTECTION ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-OET005VD |
|---|---|
| Embedded | False |
| Function | Electrostatic Discharge (ESD) |
| Supplied Contents | Board(s) |
| Utilized IC / Part | ECMF02-2HSMX6, ECMF4-2450A60N10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STEVAL-OET005 Series

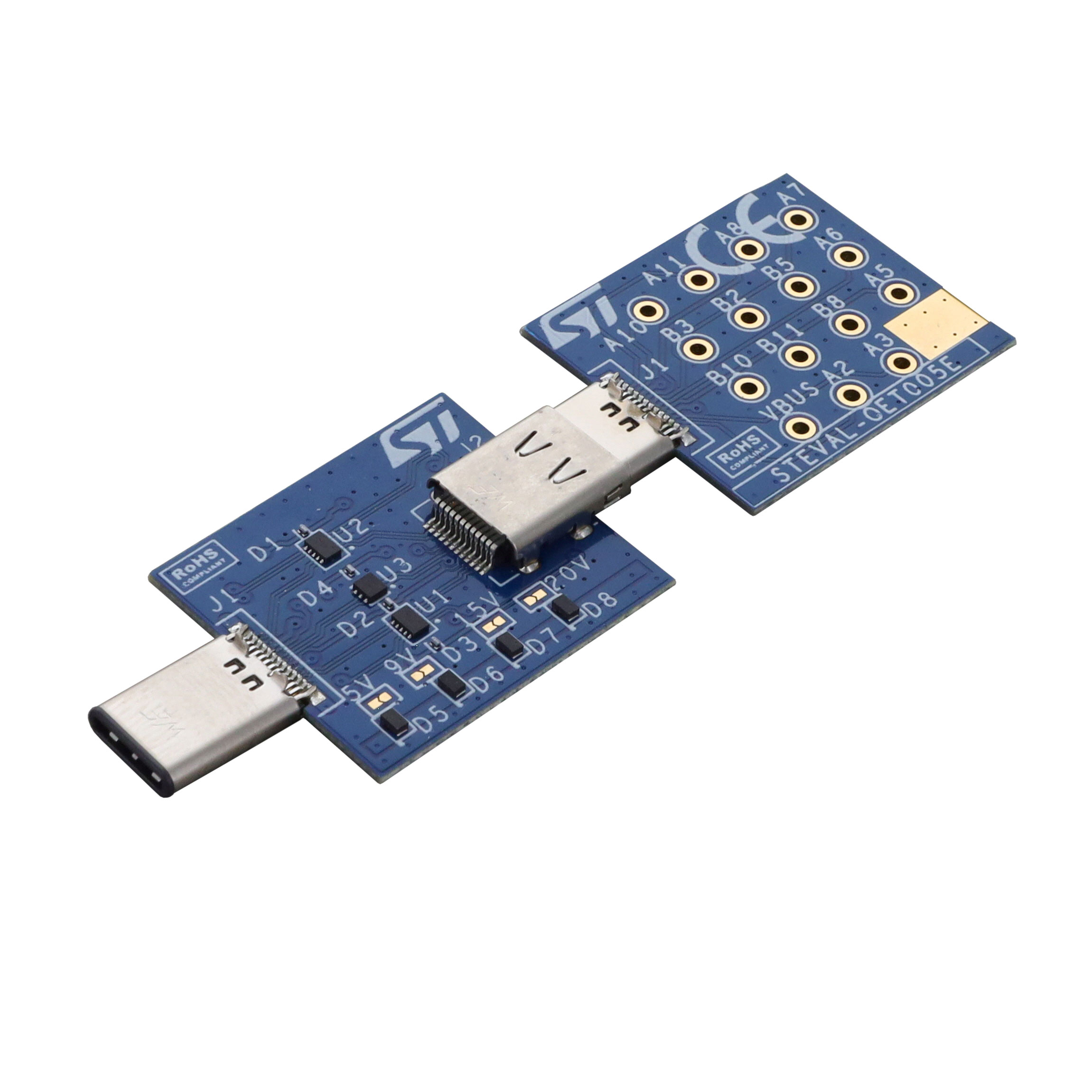

The STEVAL-OET005 kit allows evaluating ST ESD protection devices or filtering devices for USB Type-C connectors.
There are two different kits available for sale. Each kit contains an evaluation board and a testing board.
The STEVAL-OET005VC kit provides a protection solution of all lines (data, control, and power) in a 500 µm pitch package. This kit contains the STEVAL-OET005C evaluation board and the STEVAL-OET005E testing board.
