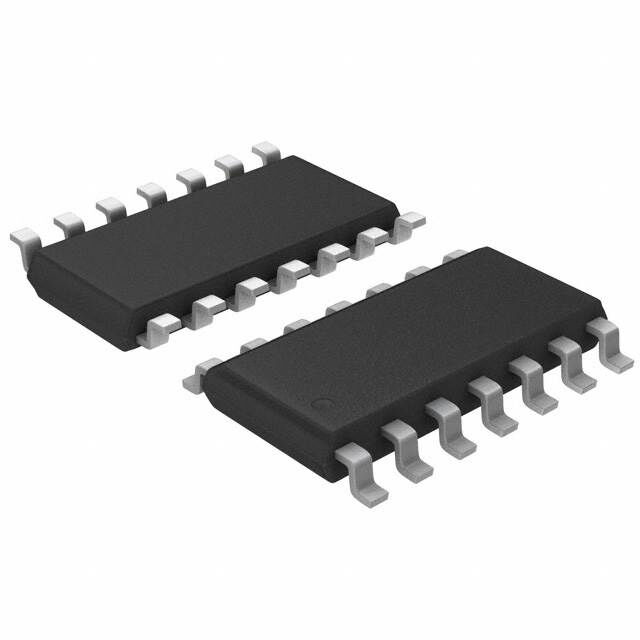

IRS21814STRPBF

Active

Infineon Technologies

THE IRS21814S IS A 600 V HIGH-SIDE AND LOW-SIDE GATE DRIVER IC WITH SEPARATE PIN FOR LOGIC GROUND (14 LEAD SOIC PACKAGE)

Deep-Dive with AI

Search across all available documentation for this part.

IRS21814STRPBF

Active

Infineon Technologies

THE IRS21814S IS A 600 V HIGH-SIDE AND LOW-SIDE GATE DRIVER IC WITH SEPARATE PIN FOR LOGIC GROUND (14 LEAD SOIC PACKAGE)

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRS21814STRPBF

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	2.3 A
Current - Peak Output (Source, Sink) [custom]	1.9 A
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET, IGBT
High Side Voltage - Max (Bootstrap) [Max]	600 V
Input Type	Non-Inverting
Logic Voltage - VIL, VIH	2.5 V, 0.8 V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Rise / Fall Time (Typ) [custom]	20 ns
Rise / Fall Time (Typ) [custom]	40 ns
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	10 VDC

IRS21814 Series

Part	Driven Configuration	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Channel Type	Logic Voltage - VIL, VIH	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Package / Case [x]	Package / Case [y]	Package / Case	Mounting Type	High Side Voltage - Max (Bootstrap) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Drivers	Gate Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Supplier Device Package
Infineon Technologies IRS21814STRPBF	Half-Bridge	20 ns	40 ns	Independent	0.8 V 2.5 V	2.3 A	1.9 A	0.154 in	3.9 mm	14-SOIC	Surface Mount	600 V	20 V	10 VDC	2	IGBT N-Channel MOSFET	150 °C	-40 °C	Non-Inverting
Infineon Technologies IRS21814MTRPBF	Half-Bridge	20 ns	40 ns	Independent	0.8 V 2.5 V	2.3 A	1.9 A			16-VFQFN Exposed Pad 14 Leads	Surface Mount	600 V	20 V	10 VDC	2	N-Channel MOSFET	150 °C	-40 °C	Non-Inverting	16-MLPQ (4x4)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.32
		10	$ 2.08
		25	$ 1.97
		100	$ 1.68
		250	$ 1.57
		500	$ 1.38
		1000	$ 1.14
	Digi-Reel®	1	$ 2.32
		10	$ 2.08
		25	$ 1.97
		100	$ 1.68
		250	$ 1.57
		500	$ 1.38
		1000	$ 1.14
	Tape & Reel (TR)	2500	$ 1.06
		5000	$ 1.02

Description

General part information

IRS21814 Series

EiceDRIVER™ 600 Vhigh and low sidegate driver ICwith typical 1.9 A source and 2.3 A sink currents in 14 Lead SOIC package forIGBTsandMOSFETs. Also available in 14 Lead PDIP, 14 Lead MLPQ 4x4, 8 Lead SOIC, and 8 Lead PDIP. For the new version with ourSOI technologywe recommend2ED21814S06J, providing integrated bootstrap diode, better robustness and higher switching frequency
