1002-005-12100-1-TR

Active

CnC Tech, LLC

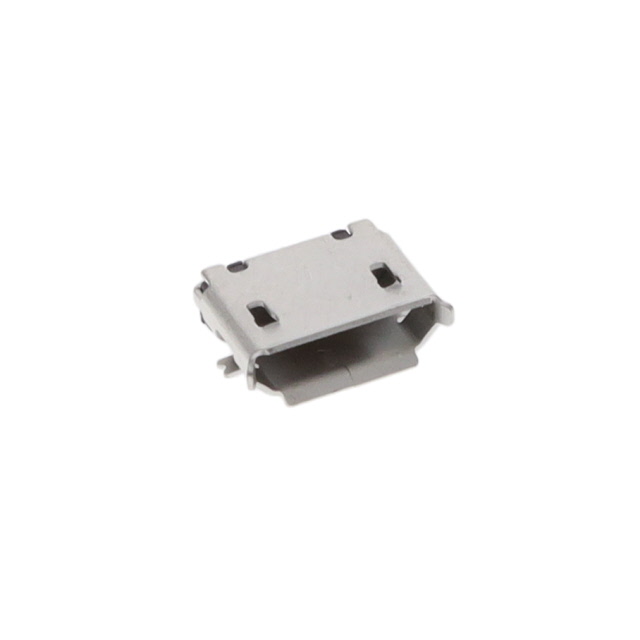

USB 2.0 MICRO B SOCKET SMD G/F

Search across all available documentation for this part.

Active

CnC Tech, LLC

USB 2.0 MICRO B SOCKET SMD G/F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1002-005-12100-1-TR	1002-005 Series

Connector Type	USB - micro B	USB - micro B
Contact Finish	Gold	Gold
Features	Solder Retention	Solder Retention
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Horizontal	Horizontal
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Contacts	5	5
Number of Ports	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Shell/Shielding Material	Brass	Brass
Shielding	Unshielded	Unshielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

USB 2.0 MICRO B SOCKET SMD TYPE

Part	Termination	Contact Finish	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Rated	Specifications	Material Flammability Rating	Number of Ports	Gender	Shielding	Connector Type	Mounting Feature	Shell/Shielding Material	Number of Contacts	Features
CnC Tech, LLC 1002-005-12100-TR	Solder	Gold	Black	-40 °C	105 ░C	Surface Mount, Right Angle	30 VAC	USB 2.0	UL94 V-0	1	Receptacle	Unshielded	USB - micro B	Horizontal	Brass	5
CnC Tech, LLC 1002-005-12100-1-TR	Solder	Gold	Black	-40 °C	105 ░C	Surface Mount, Right Angle	30 VAC	USB 2.0	UL94 V-0	1	Receptacle	Unshielded	USB - micro B	Horizontal	Brass	5	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
