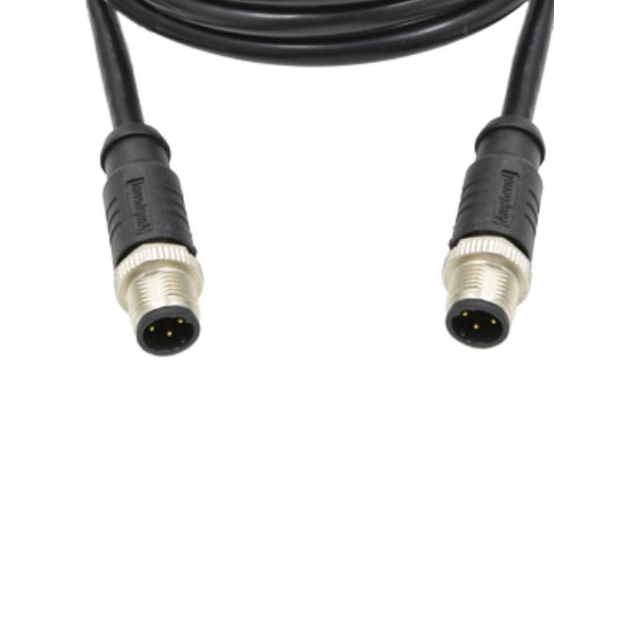

M12A04ML-12AML-SB002

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD, OV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12A04ML-12AML-SB002

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD, OV

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A04ML-12AML-SB002

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Unshielded
Usage	Industrial Environments

M12A04ML Series

Part	1st Connector Gender	Shielding	Length [x]	Length [x]	1st Connector Mounting Type	1st Connector Orientation	2nd Connector Mounting Type	2nd Connector Number of Positions Loaded	Usage	1st Connector Number of Positions Loaded	Assembly Configuration	1st Connector Type	2nd Connector Shell Size - Insert	1st Connector Shell Size - Insert	Color	2nd Connector Number of Positions	1st Connector Number of Positions	Cable Type	Cable Material	Ingress Protection	2nd Connector Type	2nd Connector Gender
Amphenol LTW M12A04ML-12AMR-SD001	Male Pins	Unshielded	1 m	3.28 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle Right Angle	M12	M12	Black	4	4	Round	Polyvinyl Chloride (PVC)	IP68 IP69K	Receptacle
Amphenol LTW M12A04ML-12AML-SB002	Male Pins	Unshielded	2 m	6.56 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle	M12	M12	Black	4	4	Round	Polyurethane (PUR)	IP68 IP69K	Receptacle
Amphenol LTW M12A04ML-12AFR-SD001	Male Pins	Unshielded	1 m	3.28 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle	M12	M12	Black	4	4	Round	Polyvinyl Chloride (PVC)	IP68 IP69K	Plug Right Angle	Female Sockets
Amphenol LTW M12A04ML-12AFR-SDA05	Male Pins	Unshielded	500 mm	1.64 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle	M12	M12	Black	4	4	Round	Polyvinyl Chloride (PVC)	IP68 IP69K	Plug Right Angle	Female Sockets
Amphenol LTW M12A04ML-12AFL-SB001	Male Pins	Unshielded	1 m	3.28 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle	M12	M12	Black	4	4	Round	Polyurethane (PUR)	IP68 IP69K	Plug	Female Sockets
Amphenol LTW M12A04ML-12AFL-SB002	Male Pins	Unshielded	2 m	6.56 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle	M12	M12	Black	4	4	Round	Polyurethane (PUR)	IP68 IP69K	Plug	Female Sockets
Amphenol LTW M12A04ML-12AFR-SB001	Male Pins	Unshielded	1 m	3.28 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle	M12	M12	Black	4	4	Round	Polyurethane (PUR)	IP68 IP69K	Plug Right Angle	Female Sockets
Amphenol LTW M12A04ML-12AMR-SDA05	Male Pins	Unshielded	500 mm	1.64 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle Right Angle	M12	M12	Black	4	4	Round	Polyvinyl Chloride (PVC)	IP68 IP69K	Receptacle
Amphenol LTW M12A04ML-12AMR-SBA05	Male Pins	Unshielded	500 mm	1.64 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle Right Angle	M12	M12	Black	4	4	Round	Polyurethane (PUR)	IP68 IP69K	Receptacle
Amphenol LTW M12A04ML-12AML-SB001	Male Pins	Unshielded	1 m	3.28 ft	Free Hanging (In-Line)	A	Free Hanging (In-Line)	All	Industrial Environments	All	Standard	Receptacle	M12	M12	Black	4	4	Round	Polyurethane (PUR)	IP68 IP69K	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.76
		10	$ 15.21
		30	$ 13.50
		50	$ 12.79
		100	$ 11.90
		250	$ 10.85
		500	$ 10.15
		1000	$ 9.56
Newark	Each	10	$ 13.34
		25	$ 12.24
		50	$ 10.93
		100	$ 10.06
		250	$ 9.77

Description

General part information

M12A04ML Series

Circular Cable Assembly Unshielded 6.56' (2.00m)
