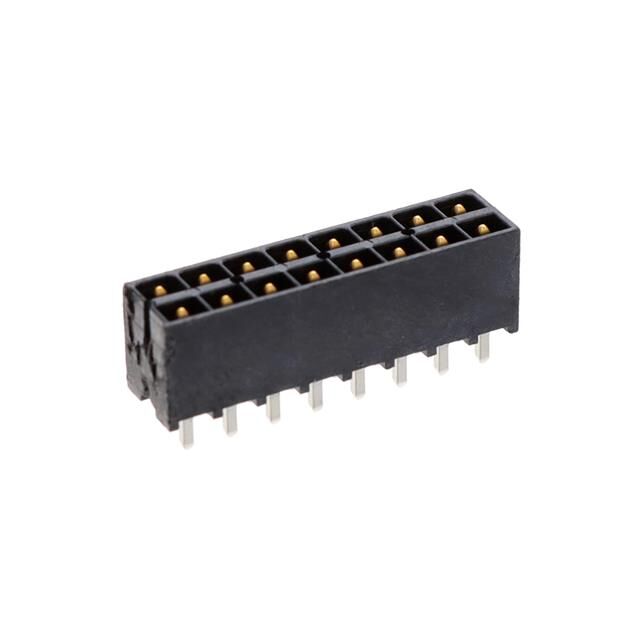

IPT1-108-01-L-D

Active

Samtec Inc.

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IPT1 Datasheet +1

IPT1-108-01-L-D

Active

Samtec Inc.

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet IPT1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT1-108-01-L-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.94 mm
Contact Length - Mating	0.155 in
Contact Length - Post	2.16 mm
Contact Length - Post	0.085 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPT1-108 Series

Part	Number of Positions	Mounting Type	Contact Finish - Mating	Insulation Material	Features	Termination	Current Rating (Amps)	Fastening Type	Voltage Rating	Insulation Color	Contact Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Insulation Height	Insulation Height	Shrouding	Connector Type	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. IPT1-108-01-S-D-VS-A	16	Surface Mount	Gold	Liquid Crystal Polymer (LCP)	Board Guide	Solder	2.3 A	Push-Pull	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	30 Áin	0.76 Ám	0.1 in	2.54 mm	All	UL94 V-0	6.35 mm	0.25 in	Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin
Samtec Inc. IPT1-108-07-L-D	16	Through Hole	Gold	Liquid Crystal Polymer (LCP)		Solder	2.3 A	Push-Pull	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	10 çin	0.25 çm	0.1 in	2.54 mm	All	UL94 V-0			Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin	0.091 in	2.3 mm	20.3 mm	0.799 in	0.89 in	22.61 mm
Samtec Inc. IPT1-108-02-L-D	16	Through Hole	Gold	Liquid Crystal Polymer (LCP)		Solder	2.3 A	Push-Pull	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	10 çin	0.25 çm	0.1 in	2.54 mm	All	UL94 V-0	9.3 mm	0.366 in	Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin	0.104 in	2.64 mm				0.47 "	11.94 mm
Samtec Inc. IPT1-108-01-S-D-VS	16	Surface Mount	Gold	Liquid Crystal Polymer (LCP)		Solder	2.3 A	Push-Pull	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	30 Áin	0.76 Ám	0.1 in	2.54 mm	All	UL94 V-0	6.35 mm	0.25 in	Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin
Samtec Inc. IPT1-108-07-S-D	16	Through Hole	Gold	Liquid Crystal Polymer (LCP)		Solder	2.3 A	Push-Pull	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	30 Áin	0.76 Ám	0.1 in	2.54 mm	All	UL94 V-0			Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin	0.091 in	2.3 mm	20.3 mm	0.799 in	0.89 in	22.61 mm
Samtec Inc. IPT1-108-06-L-D	16	Through Hole	Gold	Liquid Crystal Polymer (LCP)		Solder	2.3 A	Push-Pull	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	10 çin	0.25 çm	0.1 in	2.54 mm	All	UL94 V-0	15.29 mm	0.602 in	Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin	0.093 in	2.35 mm			0.695 in	17.65 mm
Samtec Inc. IPT1-108-01-S-D-VS-LC	16	Surface Mount	Gold	Liquid Crystal Polymer (LCP)		Solder	2.3 A	Push-Pull	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	30 Áin	0.76 Ám	0.1 in	2.54 mm	All	UL94 V-0	6.35 mm	0.25 in	Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin
Samtec Inc. IPT1-108-04-L-D	16	Through Hole	Gold	Liquid Crystal Polymer (LCP)		Solder	2.3 A	Push-Pull	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	10 çin	0.25 çm	0.1 in	2.54 mm	All	UL94 V-0	12.3 mm	0.484 in	Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin					0.59 in	14.99 mm		0.106 in	2.69 mm
Samtec Inc. IPT1-108-01-L-D	16	Through Hole	Gold	Liquid Crystal Polymer (LCP)		Solder	2.3 A	Push-Pull	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	10 çin	0.25 çm	0.1 in	2.54 mm	All	UL94 V-0	6.35 mm	0.25 in	Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin	0.085 in	2.16 mm			0.335 in	8.51 mm
Samtec Inc. IPT1-108-01-S-D-RA-FL	16	Through Hole Right Angle	Gold	Liquid Crystal Polymer (LCP)		Solder	2.3 A	Friction Lock	775 VAC 1095 VDC	Black	Phosphor Bronze	Male Pin	-55 °C	125 °C	2	Square	30 Áin	0.76 Ám	0.1 in	2.54 mm	All	UL94 V-0			Shrouded - 4 Wall	Header	3.94 mm	0.155 in	2.54 mm	0.1 in	Tin	0.09 "	2.29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.62
		50	$ 2.95
		100	$ 2.50
		500	$ 2.23
		1000	$ 1.68
		2000	$ 1.51

IPT1-108-01-L-D

Deep-Dive with AI

IPT1-108-01-L-D

Deep-Dive with AI

Technical Specifications

IPT1-108 Series

Pricing

Description

IPT1-108 Series

Documents

Datasheet

IPT1 Datasheet

.100" Mini Mate® Isolated Power Connector Terminal Strip

IPT1-108 Series
