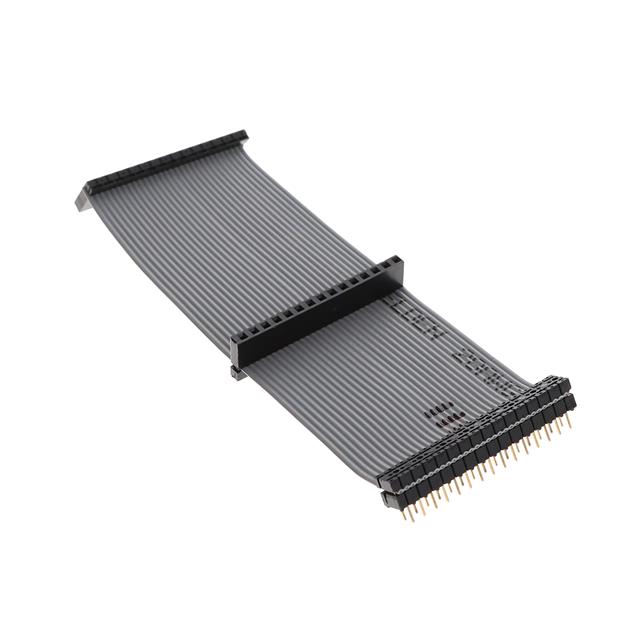

IDMD-15-T-04.00-G-S02-M
ActiveSamtec Inc.
.100" SLIM BODY DOUBLE ROW, IDC
Deep-Dive with AI
Search across all available documentation for this part.
IDMD-15-T-04.00-G-S02-M
ActiveSamtec Inc.
.100" SLIM BODY DOUBLE ROW, IDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IDMD-15-T-04.00-G-S02-M |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Plug |
| Contact Finish | Tin |
| Length [x] | 4 " |
| Length [x] | 0.333 ft |
| Length [x] | 101.6 mm |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.78 | |
| 10 | $ 14.94 | |||
| 25 | $ 14.38 | |||
| 50 | $ 14.03 | |||
| 100 | $ 14.03 | |||
Description
General part information
IDMD-15 Series
30 Position Cable Assembly Rectangular Socket to Plug 0.333' (101.60mm, 4.00")
Documents
Technical documentation and resources
